● This is designed for the tension test of the thin film (max. thickness of 2mm)
● Suitable for the 180°peeling test of the glued sheet.
● GC-2-2A/GC-2-5A are made of aluminum, and there are no filing around the gripping area.
● "GT-71" is recommended as a lower attachment if you need to set the samples without any sagging.
Specifications:
| Type | Max. Load | Face width | Upper Weight |
| GC-2-2A | 50N | 20mm | 38g |
| GC-2-5A | 50mm | 65g | |
| GC-2-2 | 500N | 20mm | 75g |
| GC-2-3 | 30mm | 100g | |
| GC-2-5 | 50mm | 155g |

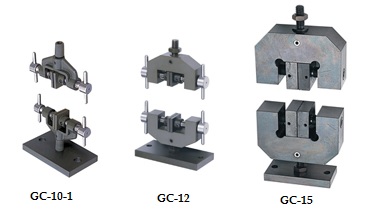

● Flat chuck is all-purpose chucks which can grip thin samples to thick samples.
● It clips the samples by fastening the plate from both sides.
Specifications:
| Type | Max. Load | Face width | Open wide | Upper Weight |
| GC-10-1 | 500N | 20mm | 0〜10mm | 140g |
| GC-10-2 | 0〜20mm | 200g | ||
| GC-10-3 | 10〜30mm | 220g | ||
| GC-12 | 2kN | 30mm | 0〜18mm | 530g |
| GC-15 | 5kN | 48mm | 0〜20mm | 3.6kg |
| GC-17 | 10kN |

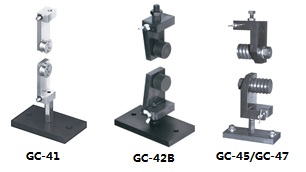

● This is suitable for tensile testing of strings, thin line, or ropes.
● It hold the samples by the frictional force to the drum, avoiding the samples to be cut at the edge of the attachment.
Specifications:
| Type | Max. Load | Wire diameter | Drum | Upper Weight |
| GC-41 | 50N | φ0.5mm | φ16mm | 27g |
| GC-42A | 500N | φ2mm | φ30mm | 580g |
| GC-42B | 2kN | |||
| GC-45 | 5kN | φ8mm | φ40mm | 3kg |
| GC-47 | 10kN |

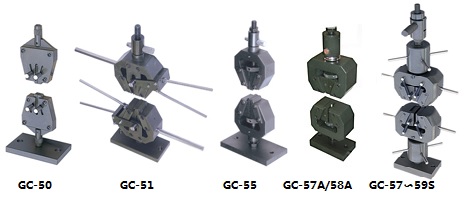

● Wedge grip has a self-clamping effect to hold the samples tightly, and it is very easy to clamp or release the samples.
● Hardened parts may cause slip since the initial grip force might be not enough.
This needs to be checked before testing the samples.
● Surface of the gripped area is flat.
As an option, "V" shaped surface for the round rod can be manufactured.
● GC-57A/GC-58A are fixed position type wedge grip.
Specifications:
| Type | Max. Load | Face width | Open wide | Upper Weight |
| GC-50 | 500N | 8mm | 4mm | 200g |
| GC-51 | 2kN | 30mm |
7mm | 1.9kg |
| GC-55 | 5kN | 5mm | 2.8kg | |
| GC-57 | 10kN | 38mm | 8mm | 6.5kg |
| GC-57A | 40mm | 9mm | ||
| GC-58 | 20kN | 38mm | 8mm | |
| GC-58A | 40mm | 9mm | ||
| GC-59 | 50kN | 45mm | 8mm | 7kg |
| GC-59S | 100kN | 8kg |

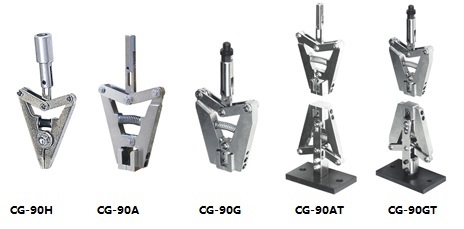

● As for the Pantograph Chuck, clamping is one-touch-type, no tightening is necessary.
● GC-90AT/GC-90GT can be used as a replacement of the Air grip and as one unit for upper and lower sides.
Specifications:
| Type | Max. Load | Face width | Open wide | Upper Weight |
| GC-90H | 50N | 4mm | 2mm | 30g |
| GC-90A | 500N | 20mm | 4mm | 200g |
| GC-90G | 1kN | 920g |

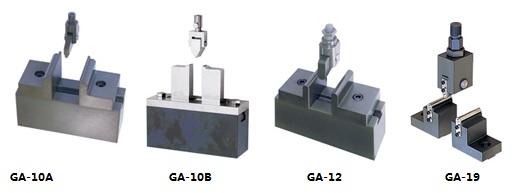

● This jig is for 3-point bending test attachment.The 4-point bending attachment can be produced, too, upon requirement.
● GA-10B is usually used for the three-point bending test for ceramic material.
Specifications:
| Type | Max. Load | R | Width | Upper Weight |
| GA-10A | 500N | 2mm | 55mm | 150g |
| GA-10B | 0.5mm |
12mm | 200g | |
| GA-12 | 10kN | 5mm | 50mm | 400g |
| GA-18 | 20kN | 980g | ||
| GA-19 | 50kN | 1.1kg | ||
| GA-19S | 100kN | 1,2kg |

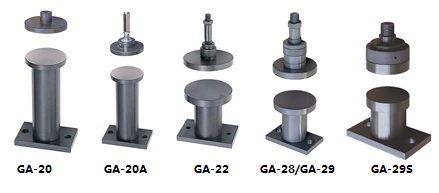

● This attachment is designed for compression test use.
● Attachment GA-20A is a self-centering type.
● Upper flat head of GA-22/28/29 is a self-centering type, and the extent of alignment can be adjusted.
Specifications:
| Type | Max. Load | Diameter | Upper Weight |
| GA-20 | 500N | φ55mm | 150g |
| GA-20A | 200g | ||
| GA-22 | 10kN | φ100mm | 920g |
| GA-28 | 20kN | 1.3kg | |
| GA-29 | 50kN | 2kg | |
| GA-29S | 100kN | 4.3kg |

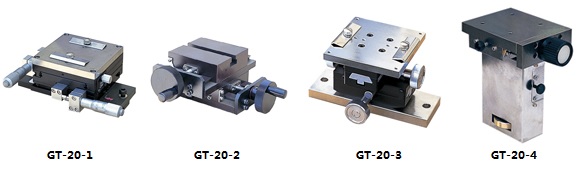

● This is used for positioning of the samples.
● Y-Z table "GT-20-4" is to be used for horizontal type test machine.
● If you wish to mount another attachment on GT-20-4, in some cases, table needs to be modified.Please contact us for detail.
Specifications:
| Type | Max. Load | Stroke |
| GT-20-1 | 50N | X±7.5mm/Y±7.5mm |
| GT-20-2 | 3kN | X±25mm/Y±25mm |
| GT-20-3 | 500N | X±30mm/Y±30mm |
| GT-20-4 | X±15mm/Z±10mm |

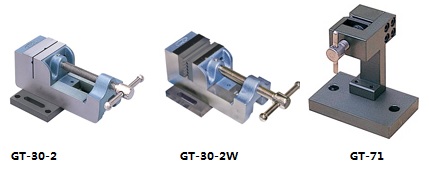

● It can be used as a lower attachment for many purposes.
● By customizing the surface of the gripping area, it will be used in many ways of testing.
● GT-30-2W is specially designed for gripping covered cable.
● GT-71 is a lower attachment, and it is used when samples needs to be set without any sag.
Specifications:
| Type | Max. Load | Width | Open wide |
| GT-30-2 | 3kN | 62mm | 64mm |
| GT-30-2W | |||
| GT-71 | 500N | 30mm | 2mm |
● GT-40/GT-42 are used for peeling test which measures the bonding strength.
● Upper attachment is an optional.Usually film chuck or pantograph chuck is selected for this attachment. (option)
Specifications:
| Type | Max. Load | Width | Peel stroke |
| GT-40 | 200N | 50mm | 130mm |
| GT-42 | 500N | 150mm |
● GT-52 is a "Pulling" chip exfoliation test attachment.GT-53 is a "Pushing" chip exfoliation test attachment.
● GC-91 is very useful for fixing the samples by its hook.It is used with GT-30-2W for the strength test of crimping terminal.
Specifications:
| Type | Max. Load | Specification | Upper Weight |
| GT-52 | 500N | Wide10mm | 105g |
| GT-53 | 100g | ||
| GC-91 | 200N | Open wide 0〜4mm | 150g |

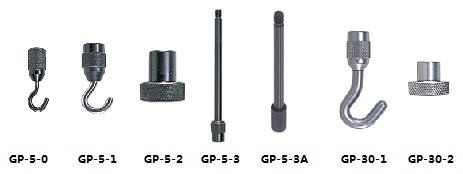

● GP-5-0/1 is a hook for catches.
● Connection screws such as 'GQ-10-3' are necessary for 'GP-30-1/2' additionally.
● 'GP-5-2/GP-30-2' are not suitable for a hard sample, because these are not hardened.
Specifications:
| Type | Max. Load | Size | Weight |
| GP-5-0 | 50N | - | 4g |
| GP-5-3A | 79mm | 8g | |
| GP-5-1 | 500N | - | 12g |
| GP-5-2 | φ16mm | 12g | |
| GP-5-3 | 100mm | 27g | |
| GP-30-1 | 3kN | - | 60g |
| GP-30-2 | φ25mm | 30g |

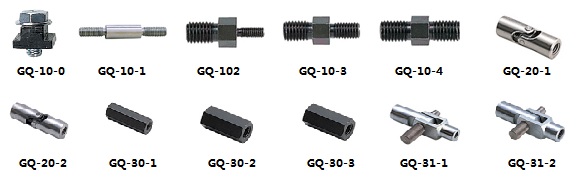

● GQ-10-0 is a T-shape nut used to mount the lower attachment.
● GQ-10-1 to 4 is a connecting rod which has male screws at both ends.
● GQ-20 is an universal joint which has female screws at both ends.
● GQ-31 is a pin-type connecting joint which has female screws at both ends.
Specifications:
| Type | Screw diameter |
| GQ-10-0 | M8 |
| GQ-10-1 | M6(M)×M6(M) |
| GQ-10-2 | M12(M)×M6(M) |
| GQ-10-3 | M12(M)×M10(M) |
| GQ-10-4 | M12(M)×M12(M) |
| GQ-20-1 | M6(F)×M6(F) |
| GQ-20-2 | M12(F)×M12(F) |
| GQ-30-1 | M6(F)×M6(F) |
| GQ-30-2 | M12(F)×M12(F) |
| GQ-30-3 | M12(F)×M10(F) |
| GQ-31-1 | M6(F)×M6(F) |
| GQ-31-2 | M12(F)×M12(F) |
