Home/Our Products Range/UNIVERSAL TESTING MACHINE/SDT-203NB

SDT-203NB

SDT-203NB type is the tension and compression testing machine, which enables various kinds of testing up to 2kN maximum load. The electric drive is constructed with the ball screw and a linear guide. This type is suitable for testing which requires a comparatively long stroke.

■Characteristics
○It is adequate for relatively long-stroke measurements.
○It can be easily handled by exclusive software. (Option)

■Usage example
○Pulling examinations of well-stretchy samples such as rubber.
○Examination with large strokes such as peeling tests.

■Options

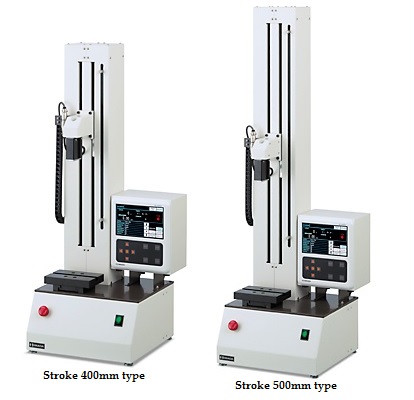

○The stroke of 400mm / 800mm can be made as an option, too.
○Output of ANALOG/PRINTER
This option is necessary for the connection to Analog recorder or printer.

UNIVERSAL TESTING MACHINE SDT-203NB

Specifications:

■Standard specifications
Model SDT-203NB-□ ※1
Maximum Load 2kN Convenient Function Memory function of the examination conditions
Peak/Bottom Hold function
Cycle mode function
Detect function of Break Point
Detect function of Start Point
Auto Cancel/Auto Feed function
Auto Start Point Return function
Judgment function
Load Display [The specifications of Load Range] Reference
[The combination of Load Range according to the model]
Minimum Unit
Load Precision JIS 1 class (Indication value ±1% range)
Displacement Minimum Unit 0.01mm
Drive type Brush less DC Motor
Speed Range 5〜500mm/min
Distance from a Table to a Load-cell Max. 647mm
(An effective stroke is decided by selection of an attachment)		 Output ※2 USB
Distance of Sample to Column 80mm Power supply AC100V 5A
Table Size 100×150mm(With T-groove) Weight Approx 47kg
Safety Device Optional setting Upper and Lower Limit
Over-load Prevention function		 Size W376×D320×H1097mm （View drawings）
※1 The model symbol is put in □. Refer to [The combination of Load Range according to the model].
※2 Analog output and Printer output can be installed with option.
■Specifications of Load Range
Load Range Maximum Load Display Minimum Unit
2kN 2000N 1N
1kN 1000.0N 0.1N
500N 500.0N
200N 200.0N
100N 100.00N 0.01N
50N 50.00N
20N 20.00N
※ The usable range is recommended at 20〜100% of each setting Load Range.
※ t is possible as an option to add Load Range other than the above listed.
■Combination of Load Range according to the model
Model Usable Range Setting Load Range
2kN 1kN 500N 200N 100N 50N 20N
SDT-203NB-200R1 400N〜2kN ● - - - - - -
SDT-203NB-200R2 100N〜2kN ● - ● - - - -
SDT-203NB-200R3 20N〜2kN ● - ● - ● - -
SDT-203NB-100R1 200N〜1kN - ● - - - - -
SDT-203NB-100R2 40N〜1kN - ● - ● - - -
SDT-203NB-100R3 10N〜1kN - ● - ● - ● -
SDT-203NB-50R1 100N〜500N - - ● - - - -
SDT-203NB-50R2 20N〜500N - - ● - ● - -
SDT-203NB-50R3 4N〜500N - - ● - ● - ●
