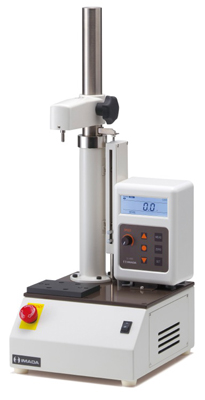

SV-55BC is an electrically operated desktop type tensile testing machine. The value of load is measured by loadcell. Maximum load for this type (model) is 500N.
Characteristics:
○Compared to combinations of Digital Force Gauge and Stand,this testing machine is inexpensive, and it can be measured with simple operation.
However, it has the functions according to the UTM such as overload protection and software.
-This testing machine is about 30% smaller and lighter than the previous model.
So, you do not have to worry about that place.
-It can prepare loadcell from 20N to 500N.
Therefore, you can choose the one suitable for what you want to measure.
In addition, if the 2 range specification type, it will be expanded the measurement range.
Usage example
-Peeling tests of the adhesion and the heat seal.
-Tensile tests of solderless terminal.
-Various kinds of test such as foods or medical supplies.
Options
-Long Axis /150mm longer axis than the standard.
-Special Speed type (5～120mm/min)
-Printer Output (for Digimatic Printer) *2
-Date Processing Software 'Facirec'
| Model | SV-55CB-□(※1） |
| Maximum Load | 500N |
| Load Display | [Specifications of Load Range]/ |
| Load Precision | [Combination of Load Range According to the Model] Reference |
| Drive Type | DC Brushless Motor |
| Speed Range | 15～400mm/min |
| Stroke | 130mm |
| ample Mounting Span | 227～378mm |
| Displacement to Column | 85mm |
| Table Size | 100×65mm(4 point-M8) |
| Safety Device | Optional Setting Upper and Lower Limit |
| Overload Prevention Function | |
| Convenient Function | Peak Hold Function |
| Forwarding Function | |
| Auto Start Point Return Function | |
| Judgment Function | |
| Output | USB(For Measure software) / For Printer(*2) |
| Power Supply | AC100V～240V 3A |
| Weight | Approx 12kgk |
| Size | W220×D250×H582mm (*3) |
| Load Range | Maximum Load Display | Resolution |
| 500N | 500N | 0.1N |
| 200N | 200.2N | |
| 100N | 99.99N | 0.01N |
| 50N | 50.00N | |
| 20N | 20.00N | |
| 10N | 9.999N | 0.001N |
| 5N | 5.000N |
| Model | Usable Range | Setting Load Range | ||||||
| 500N | 200N | 100N | 50N | 20N | 10N | 5N | ||
| SV-55CB-50R1 | 100N〜500N | ● | - | - | - | - | - | - |
| SV-55CB-50R2 | 20N〜500N | ● | - | ● | - | - | - | - |
| SV-55CB-20R1 | 40N〜200N | - | ● | - | - | - | - | - |
| SV-55CB-20R2 | 10N〜200N | - | ● | - | ● | - | - | - |
| SV-55CB-5R1 | 10N〜50N | - | - | - | ● | - | - | - |
| SV-55CB-5R2 | 2N〜50N | - | - | - | ● | - | ● | - |
| SV-55CB-2R1 | 4N〜20N | - | - | - | - | ● | - | - |
| SV-55CB-2R2 | 1N〜20N | - | - | - | - | ● | - | ● |

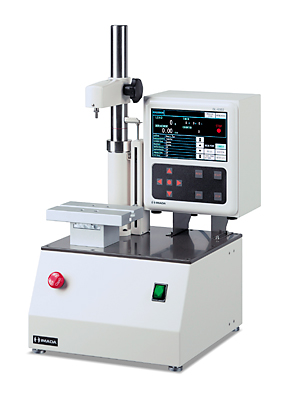

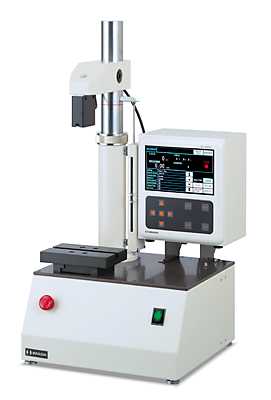

As for this model, the test machine has the ability up to 500N of maximum load. Various kinds of load examination can be performed. It is compact and can be used easily.
Characteristics
-It is compact and economical.
However, both measurements of load and displacement are possible.
-It can be easily handled by exclusive software.
Usage example
-The evaluation examinations such as electricity or electronic parts.
-Various kinds of examination such as foods or medical supplies.
-The examinations of small springs.
Options
-Long Axis / Test machine with 150mm longer axis than the standard can be offered upon request.
-Special speed / A customized speed can be also arranged.
-Output of ANALOG/PRINTER / This option is necessary for the connection to Analog recorder or printer.
Specifications:
Standard specifications
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Specifications of Load Rang
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Combination of Load Range according to the model
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||

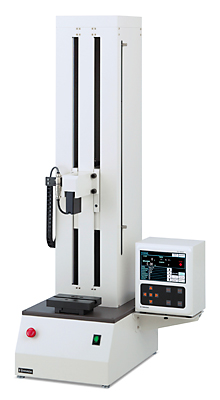

This model of testing machine can perform various kind of load measurement to 2kN maximum load. The efficiency on the drive is increased. It is compact in size and suitable for middle class load testings.
Characteristics
-It is force middle class.
The operation is easy due to in the single column UP/DOWN axis.
-The drive type of the ball screw by single axis.
-It can be easily handled by exclusive software. (Option)
Usage example
-Material examinations of middle load.
-Various kinds of evaluation examination of machine parts and the products.
Options
-Output of ANALOG/PRINTER
This option is necessary for the connection to Analog recorder or printer.
-Special speed construction
Specifications:
Standard specifications
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Specifications of Load Range
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Combination of Load Range according to the model
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||

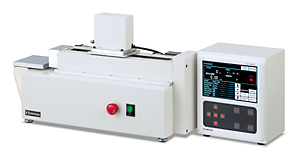

SH-14NB type is the horizontal and desktop type testing machine, which allows measuring up to 500N maximum load. The measuring of the load will be done by the loadcell and the displacement by the encoder. This type of testing machines is suitable, when the test pieces can be set down only in horizontal or the operation in the horizontal way is easier. As for the measurement accuracy, vertical types are superior to horizontal one, since for the horizontal type the jigs are placed at the right angle direction to gravity.
Characteristics
-It is horizontal testing equipment, compact in size and can be put on the desk.
-It can be easily handled by exclusive software (Option).
Usage example
-Peeling examinations of semiconductor ICs.
-Frictional force examinations.
Options
-Special speed
-Output of ANALOG/PRINTER
This option is necessary for the connection to Analog recorder or printer.
Specifications:
Standard specifications
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Specifications of Load Range
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Combination of Load Range according to the model
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
SH-14NB type is the horizontal and desktop type testing machine, which allows measuring up to 500N maximum load. The measuring of the load will be done by the loadcell and the displacement by the encoder. This type of testing machines is suitable, when the test pieces can be set down only in horizontal or the operation in the horizontal way is easier. As for the measurement accuracy, vertical types are superior to horizontal one, since for the horizontal type the jigs are placed at the right angle direction to gravity.
Characteristics
-It is horizontal testing equipment, compact in size and can be put on the desk.
-It can be easily handled by exclusive software (Option).
Usage example
-Peeling examinations of semiconductor ICs.
-Frictional force examinations.
Options
-Special speed
-Output of ANALOG/PRINTER
This option is necessary for the connection to Analog recorder or printer.
Standard specifications
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Specifications of Load Range
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Combination of Load Range according to the model
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
SDT-503NB type is tension and compression testing machine with the electric drive. Various examinations to maximum load 5kN are possible. It has the maximum load capacity as a desk model with single column.
Characteristics
-It is tension and compression testing equipment with the maximum load capacity as the desk model with single column.
-This is suitable for the long stroke examinations.
-It can be easily handled by exclusive software. (Option)
Usage example
-Various material examinations of the middle load.
-The evaluation examinations of the small machine parts.
Options
-The customized stroke can be produced upon request.
-Output of ANALOG/PRINTER
This option is necessary for the connection to Analog recorder or printer.
Specifications:
Standard specifications
|
||||||||||||||||||||||||||||||||||||
Specifications of Load Range
※ It is possible as an option to add Load Range other than the above listed.。 |
||||||||||||||||||||||||||||||||||||
Combination of Load Range according to the model
|
||||||||||||||||||||||||||||||||||||

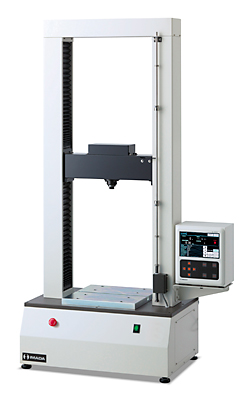

SDWS type is a gate-frame type pulling and compression testing machine. The load is given onto test pieces by the crosshead which moves up and down by the forwarding screws on both sides of the frame. This type is to be used on a working table.
Usage example
-Examinations of relatively large samples are possible with this gate type frame structure.
○It can be easily handled by exclusive software. (Option)
主な用途
-Various load tests in medium to big capacity.
-Various evaluation examinations of machine parts and comparatively bigger samples.
Options / Special specifications
-Broad type with wider width.
-Longer / Shorter stroke type.
-Offered with homoiothermal housing/case for environmental testings.
-Additional load ranges.
-Displacement resolution of 1μm.
-Output to ANALOG/PRINTER
This option becomes is necessary for the connection to Analog recorder or printer.
Standard specifications
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Specifications of Load Range
※It is possible as an option to add Load Range other than the above listed. |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Combination of Load Range according to the model
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
SDW type is a testing machine for a load capacity from 10kN upto 200kN. The machine is placed on the floor. The load is given onto test pieces by the crosshead which moves up and down by the forwarding screws on both sides of the frame. For the 200kN type, please inquire us of the specification.
Characteristics
○Universal type testing machine from 10kN to 200kN.
○It can be also used for an examination of the small load by adding a smaller load-range.
○The examinations of the comparatively large sample is possible due to gate type frame structure.
○It can be easily handled by exclusive software. (Option)
Usage example
○arious examinations of large load.
○Various evaluation examinations of machine parts and comparatively bigger sample.
Options / Special specifications
○A wide type of the valid examination width.
○The type that is long (short) of the stroke.
○The type that an environmental examination (Homoiothermal box) was added to
○The addition of the load range.
○A type of displacement resolving power 1μm.
○Output of ANALOG/PRINTER
This option is necessary for the connection to Analog recorder or printer.
Standard specifications
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Specifications of Load Range
※ It is possible for the option to add other Load Range that Load-cell is changed to other than the above. |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Combination of Load Range according to the model
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
