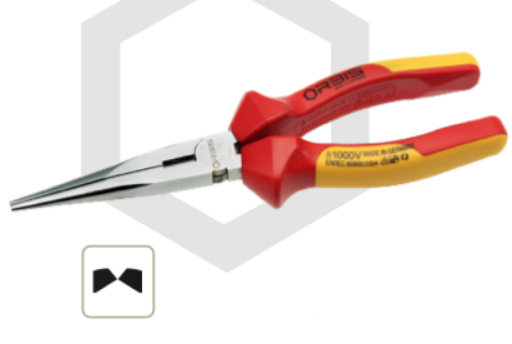

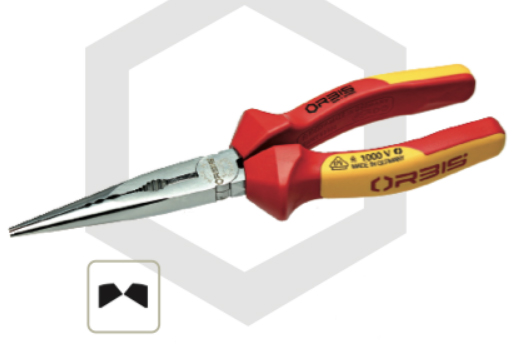

Features:
- straight half-round, long and slim knurled jaws with cutter
- for precise manipulating and cutting of wires
Specification | DIN ISO 5745 | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Ref. No. | 2022 | 20RR | 35M2 | 35RR | 40RV VDE |
44RR VDE |
mm | " | MH | H | P | ||
15 - 140 | . | . | . | . | . | . | 145 | 5 3/4 | 2,3 | 1,6 | 110 | 130 | |
15 - 160 | . | . | . | . | . | . | 160 | 6 1/4 | 2,5 | 1,6 | 125 | 145 | |
15 - 200 | . | . | . | . | . | . | 200 | 8 | 2,8 | 1,8 | 165 | 190 |

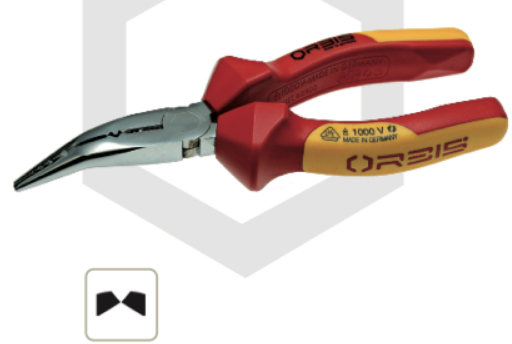

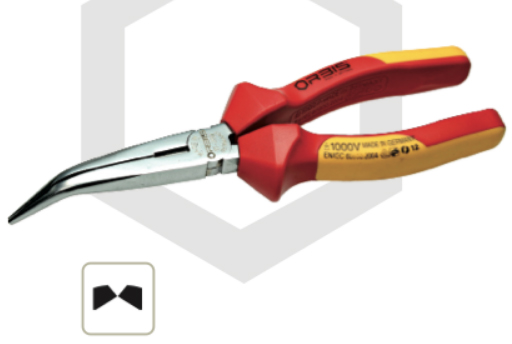

Features:
- bent 40o half-round, long and slim knurled jaws with cutter
- for precise manipulating and cutting of wires and clear view into working space
Specification | DIN ISO 5745 | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Ref. No. | 2022 | 20RR | 35M2 | 35RR | 40RV VDE |
44RR VDE |
mm | " | MH | H | P | ||
17 - 160 | . | . | . | . | . | . | 160 | 6 1/4 | 2,5 | 1,6 | 125 | 145 | |
17 - 200 | . | . | . | . | . | . | 200 | 8 | 2,8 | 1,8 | 165 | 190 |
Features:
- bent 35o half-round, long and slim knurled jaws with cutter
- added value: cutting, fixing, stripping and crimping
- universal multi talent for precise jobs in workshop, household and factory
Specification | DIN ISO 5745 | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Ref. No. | 2022 | 20RR | 35M2 | 35RR | 40RV VDE |
44RR VDE |
mm | " | MH | H | P | ||
16 - 160 | . | . | . | . | . | . | 160 | 6 1/4 | 2,5 | 1,6 | 125 | 145 |

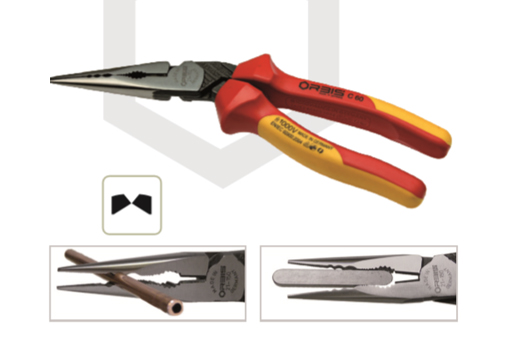

Features:
- half-round, straight long and slim knurled jaws specially profiled
- smooth wave profile and 4 point vice-grip pipe hole
- added value: pulling of round pieces and manipulating of sensitive pieces (copper tubes, thread, cables)
Specification | DIN ISO 5745 | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Ref. No. | 2022 | 20RR | 35M2 | 35RR | 40RV VDE |
44RR VDE |
mm | " | MH | H | P | ||
16 - 200 | . | . | . | . | . | . | 200 | 8 | 2,8 | 1,8 | 165 | 190 |

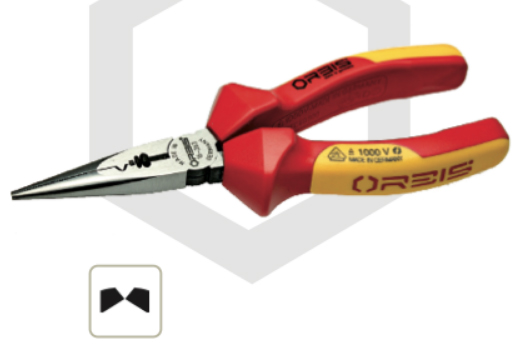

Features:
- half-round, straight long and slim knurled jaws with cutter
- added value: stripping and crimping of ferrules (1.5 and 2.5 mmo) and terminals/cable shoes
- multi talent for precise jobs with wire and electrical installation in workshop, household and factory
Specification | DIN ISO 5745 | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Ref. No. | 2022 | 20RR | 35M2 | 35RR | 40RV VDE |
44RR VDE |
mm | " | MH | H | P | ||
16 - 263 | . | . | . | . | . | . | 160 | 6 1/4 | 2,5 | 1,6 | 135 | 155 |

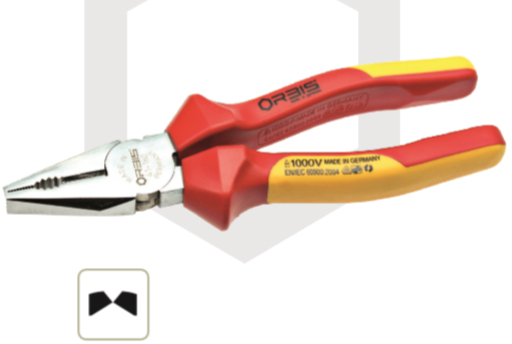

Features:
- Mulifunctional tool for electrical installation and wiring
- precision cutting edge for recesses for stripping of conductors of (1.5 and 2.5 mmo) and for cutting of soft copper wires up to hard steel wires
Specification | DIN ISO 5743 | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Ref. No. | 2022 | 20RR | 35M2 | 35RR | 40RV VDE |
44RR VDE |
mm | " | MH | H | P | ||
21 - 160 | . | . | . | . | . | . | 160 | 6 1/4 | 1,5 + 2,5 | 190 | 220 |
Features:
- approved EvoL!ne® ergonomics with power joint
- half-round, straight long and slim knurled jaws specially profiled
- smooth wave profile and 4 point vice-grip pipe hole
- added value: pulling of round pieces and manipulating of sensitive pieces (copper tubes, thread, cables)
Specification | DIN ISO 5743 | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Ref. No. | 2022 | 20RR | 35M2 | 35RR | 40RV VDE |
44RR VDE |
mm | " | MH | H | P | ||
21 - 150 | . | . | . | . | . | . | 220 | 9 | 3,0 | 2,0 | 1,4 | 295 |

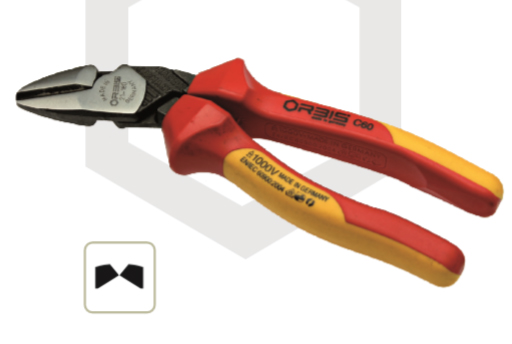

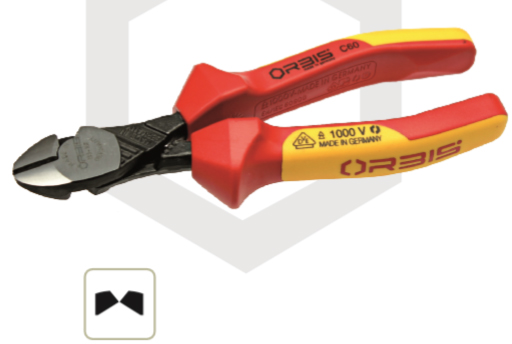

Features:
- approved EvoL!ne® ergonomics with power joint
- extra long precision cutting edge
- saves cutting force by 25%
Specification | DIN ISO 5743 | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Ref. No. | 2022 | 20RR | 35M2 | 35RR | 40RV VDE |
44RR VDE |
mm | " | MH | H | P | ||
21 - 180 | . | . | . | . | . | . | 180 | 7 | 3,8 | 2,7 | 2,3 | 270 |

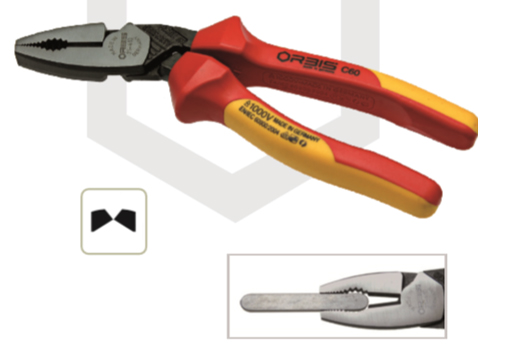

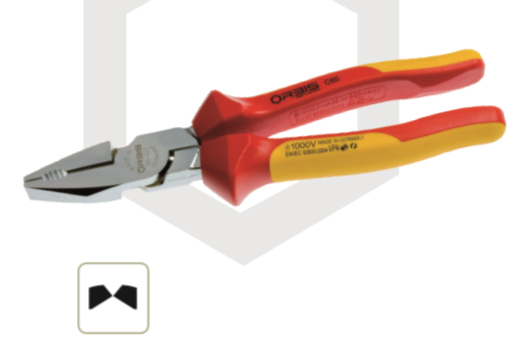

Features:
- approved EvoL!ne® ergonomics with power joint
- knurled jaws with extra long cutting edge and 4-point vice-grip pipe hole
- rounded back for easy access and levering
- saves cutting force by 40 % universal tool for electrical wiring: cutting, stripping, shearing, crimping and bending of loops
Specification | DIN ISO 5743 | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Ref. No. | 2022 | 20RR | 35M2 | 35RR | 40RV VDE |
44RR VDE |
mm | " | MH | H | P | ||
21 - 410 | . | . | . | . | . | . | 190 | 7 1/2 | 3,5 | 2,5 | 2,0 | 295 |
Features:
- for soft and medium hard wire (MH)
- precise cutting edges for miscellaneous use
- Swedish pattern
Specification | DIN ISO 5743 | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Ref. No. | 2022 | 20RR | 35M2 | 35RR | 40RV VDE |
44RR VDE |
mm | " | MH | H | P | ||
28 - 130 | . | . | . | . | . | . | 130 | 5 | 2,0 | 1,6 | 1,4 | 125 | 150 |
Features:
- for soft and hard wire (H)
- precise cutting edges for miscellaneous use
- Swedish pattern
Specification | DIN ISO 5743 | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Ref. No. | 2022 | 20RR | 35M2 | 35RR | 40RV VDE |
44RR VDE |
mm | " | MH | H | P | ||
28 - 140 | . | . | . | . | . | . | 145 | 5 3/4 | 2,8 | 2,0 | 1,4 | 150 | 175 |
28 - 160 | . | . | . | . | . | . | 160 | 6 1/4 | 3,0 | 2,3 | 1,6 | 190 | 220 |
28 - 180 | . | . | . | . | . | . | 180 | 7 | 3,0 | 2,3 | 1,6 | 190 | 220 |
Features:
- for soft and piano wire (9)
- precise shaped and power saving special cutting edges for miscellaneous use
- Swedish pattern
Specification | DIN ISO 5743 | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Ref. No. | 2022 | 20RR | 35M2 | 35RR | 40RV VDE |
44RR VDE |
mm | " | MH | H | P | ||
29 - 160 | . | . | . | . | . | . | 160 | 6 1/4 | 3,5 | 2,5 | 2,0 | 190 | 220 |

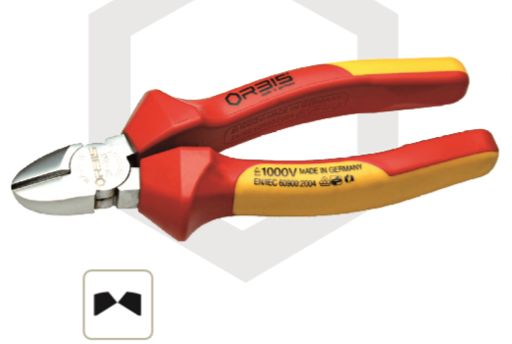

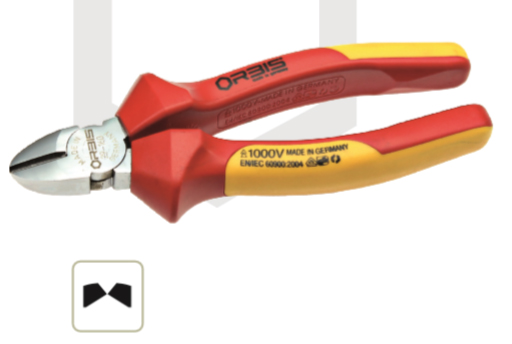

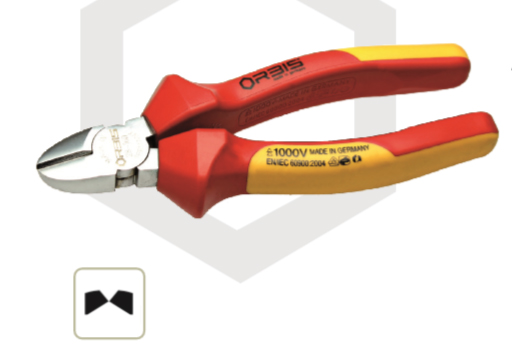

Features:
- for soft and piano wire (P)
- powerjoint and precision cutting edges for hardest and enduring use
Specification | DIN ISO 5743 | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Ref. No. | 2022 | 20RR | 35M2 | 35RR | 40RV VDE |
44RR VDE |
mm | " | MH | H | P | ||
33 - 140 | . | . | . | . | . | . | 145 | 5 3/4 | 3,0 | 2,3 | 1,8 | 145 | 170 |
33 - 160 | . | . | . | . | . | . | 160 | 6 1/4 | 3,5 | 2,5 | 2,0 | 190 | 220 |
33 - 180 | . | . | . | . | . | . | 180 | 7 | 3,8 | 2,7 | 2,3 | 225 | 260 |
33 - 200 | . | . | . | . | . | . | 200 | 8 | 4,2 | 3,0 | 2,5 | 250 | 290 |

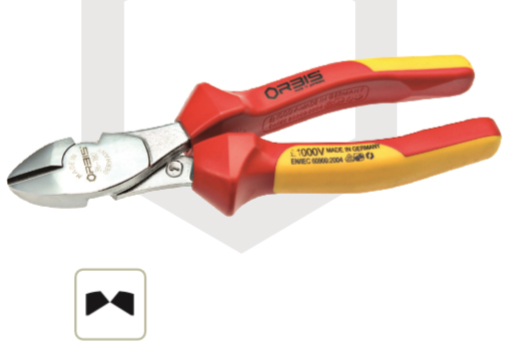

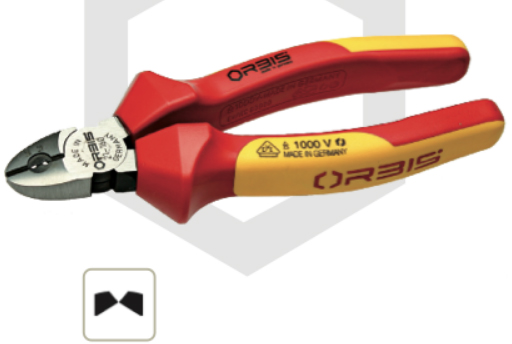

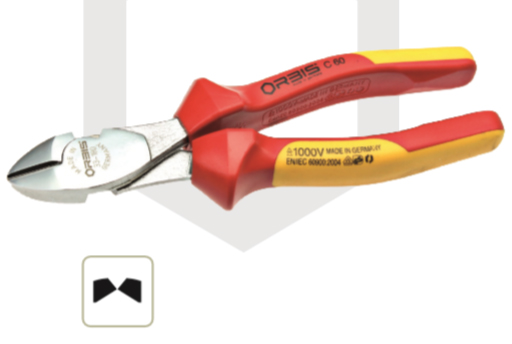

Features:
- for soft and piano wire (P)
- optimized powerjoint saves cutting force by 20 %
- precision cutting edges for hardest and enduring use
Specification | DIN ISO 5743 | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Ref. No. | 2022 | 20RR | 35M2 | 35RR | 40RV VDE |
44RR VDE |
mm | " | MH | H | P | ||
133 - 160 | . | . | . | . | . | . | 160 | 6 1/4 | 3,5 | 2,5 | 2,0 | 190 | 220 |
133 - 180 | . | . | . | . | . | . | 180 | 7 | 3,8 | 2,7 | 2,3 | 225 | 260 |
133 - 200 | . | . | . | . | . | . | 200 | 8 | 4,2 | 3,0 | 2,5 | 250 | 290 |
Features:
- for soft and hard wire (H)
- powerjoint and precision cutting edges for miscellaneous use
Specification | DIN ISO 5743 | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Ref. No. | 2022 | 20RR | 35M2 | 35RR | 40RV VDE |
44RR VDE |
mm | " | MH | H | P | ||
36 - 180 | . | . | . | . | . | . | 180 | 7 | 3,8 | 2,7 | 2,3 | 225 | 260 |
Features:
- for soft and hard wire (H)
- long precision cutting edges, knurled jaws for flat and serrated pipe hole for round pieces
- with facet for a better access
Specification | DIN ISO 5746 | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Ref. No. | 2022 | 20RR | 35M2 | 35RR | 40RV VDE |
44RR VDE |
mm | " | MH | H | P | ||
41 - 125 | . | . | . | . | . | . | 125 | 5 | |||||
41 - 140 | . | . | . | . | . | . | 140 | 5 1/2 | 2,3 | 1,6 | 145 | 170 | |
41 - 160 | . | . | . | . | . | . | 160 | 6 1/4 | 2,5 | 1,8 | 185 | 210 | |
41 - 180 | . | . | . | . | . | . | 180 | 7 | 2,8 | 2,5 | 225 | 265 | |
41 - 200 | . | . | . | . | . | . | 200 | 8 | 3,0 | 2,8 | 285 | 325 |
Features:
- for soft and piano wire (P)
- optimized powerjoint saves cutting force by 40 %
- extralong precision cutting edges, knurled jaws for flat and serrated pipe hole for round pieces
- additional gripping area underneath of joint (non VDE)
Specification | DIN ISO 5746 | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Ref. No. | 2022 | 20RR | 35M2 | 35RR | 40RV VDE |
44RR VDE |
mm | " | MH | H | P | ||
46 - 200 | . | . | . | . | . | . | 200 | 8 | 3,8 | 2,7 | 2,3 | 275 | 325 |

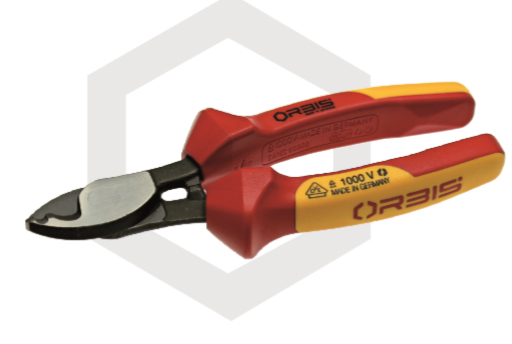

Features:
- for cutting of copper and aluminium cables
- not for hard drawn copper conductors or steel wire
- slim, riveted joint
Specification | DIN ISO 5746 | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Ref. No. | 2022 | 20RR | 35M2 | 35RR | 40RV VDE |
44RR VDE |
mm | " | MH | H | P | ||
47 - 160 | . | . | . | . | . | . | 160 | 6 1/4 | 10mm / 50mm2 | 275 | 325 | ||
47 - 210 | . | . | . | . | . | . | 210 | 8 1/4 | 12mm / 70mm2 | 335 |

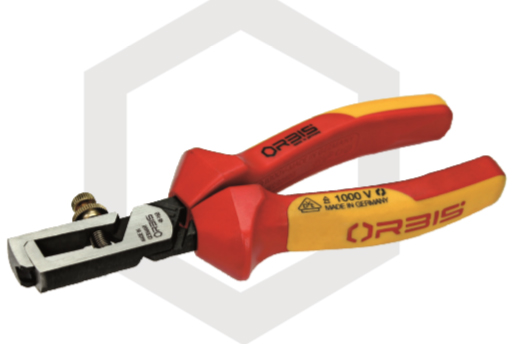

Features:
- for stripping of single, multiple and fine stranded conductors with plastic or rubber insulation
- max. 5.0 mm resp. 10 mm2 cable cross section
- with spring, adjusting screw and lock nut
Specification | DIN ISO 5744 | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Ref. No. | 2022 | 20RR | 35M2 | 35RR | 40RV VDE |
44RR VDE |
mm | " | MH | H | P | ||
48 - 160 | . | . | . | . | . | . | 160 | 6 1/4 | 5mm / 10mm2 | 140 | 165 |

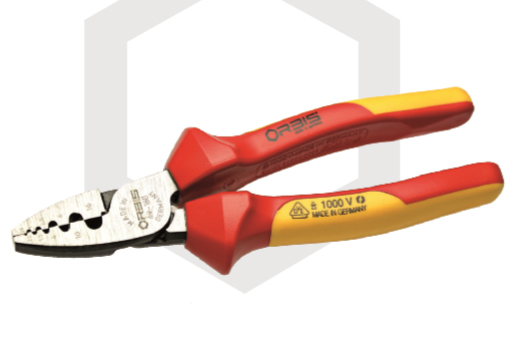

Features:
- for crimping wire end sleeves/ferrules from 0.25 to 16 mm2 (DIN 46228 parts 1 + 4)
- marked half-round dies for reliable connections between the sleeve and the conductor
Specification | DIN ISO 5744 | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Ref. No. | 2022 | 20RR | 35M2 | 35RR | 40RV VDE |
44RR VDE |
mm | " | MH | H | P | ||
49 - 140 | . | . | . | . | . | . | 145 | 5 3/4 | 0,25mm / 2,5mm2 | 130 | |||
49 - 180 | . | . | . | . | . | . | 180 | 7 | 0,25mm / 16mm2 | 250 |

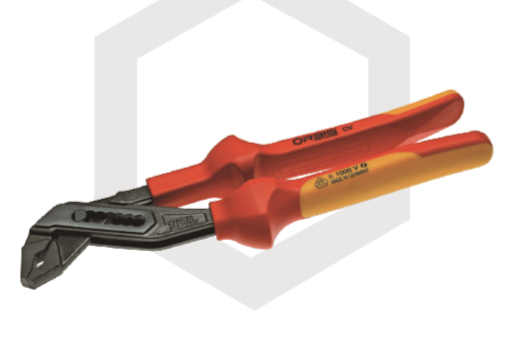

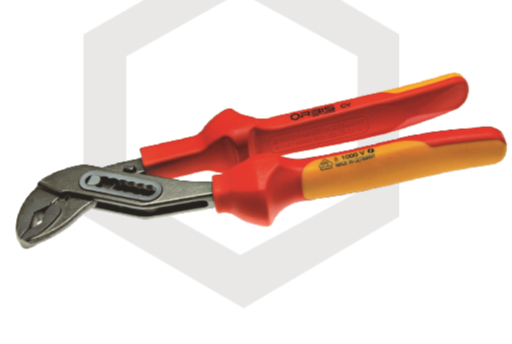

Features:
- durable box joint design for longtime reliability
- self-locking on pipes and nuts for safe and power saving work
- robust design - hard-wearing chrome vanadium steel
- insensitive to dirt - best practice in industrial surroundings
Specification | DIN ISO 8976 | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Ref. No. | 2022 | 20RR | 35M2 | 35RR | 40RV VDE |
44RR VDE |
mm | " | MH | H | P | ||
77 - 240 | . | . | . | . | . | . | 240 | 9 1/2 | R: 1/8" - 1 1/4" S: 10-36mm2 | 290 | 330 |
Features:
- durable box joint design for longtime reliability and firm gripping with add. induction hardened serration (up to 61 HRC)
- self-locking on pipes and nuts for safe and power saving work
- robust design - hard-wearing chrome vanadium steel
- insensitive to dirt - best practice in industrial surroundings
Specification | DIN ISO 8976 | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Ref. No. | 2022 | 20RR | 35M2 | 35RR | 40RV VDE |
44RR VDE |
mm | " | MH | H | P | ||
77 - 255 | . | . | . | . | . | . | 250 | 9 1/2 | R: 1/8" - 1 1/2" S: 5-36mm2 | 315 | 355 |
