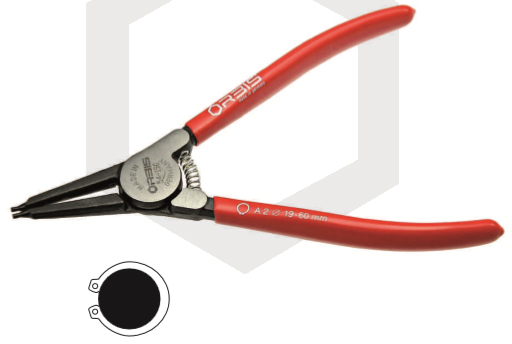

Features:
- For fitting external circlips (DIN 471 and DIN 983) on axles from 3 - 140 mm
- Version1: straight tips (DIN 5254 Form A) with opening spring

Circlip Pliers for External Rings

Specification									DIN ISO 5254 A
Ref. No.	2622	3422					mm	"	Ring Grobe
54 - 030	.	.					135	5 1/2	A0	3 - 10 mm		85
54 - 100	.	.					135	5 1/2	A1	10 - 25 mm		85
54 - 190	.	.					180	7	A2	19 - 60 mm		185
54 - 400	.	.					225	9	A3	40 - 100 mm		240
54 - 850	.	.					320	12 1/2	A4	85 - 140 mm		470

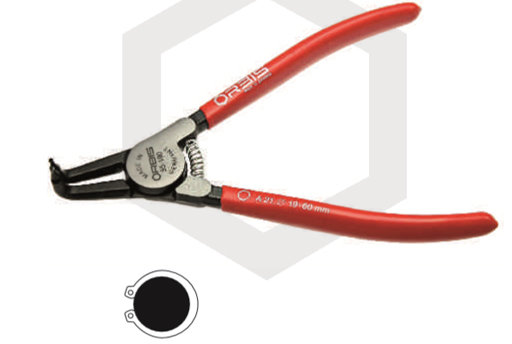

Features:
- For fitting external circlips (DIN 471 and DIN 983) on axles from 3 - 140 mm
- Version2: 90^o angled tips (DIN5254 Form B) with opening spring

Circlip Pliers for External Rings 90^o

Specification									DIN ISO 5254 B
Ref. No.	2622	3422					mm	"	Ring Grobe
55 - 030	.	.					135	5 1/2	A01	3 - 10 mm		85
55 - 100	.	.					135	5 1/2	A11	10 - 25 mm		85
55 - 190	.	.					180	7	A21	19 - 60 mm		185
55 - 400	.	.					225	9	A31	40 - 100 mm		240
55 - 850	.	.					320	12 1/2	A41	85 - 140 mm		470

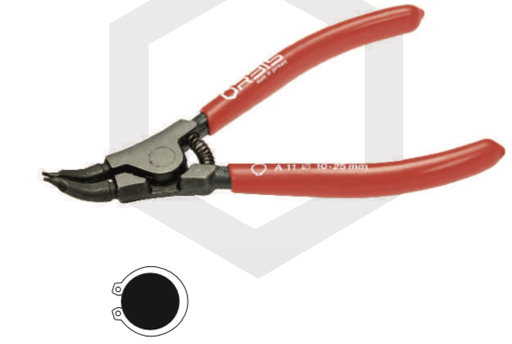

Features:
- For fitting external circlips (DIN 471 and DIN 983) on axles from 3 - 140 mm
- Version3: 45^o angled tips with opening spring

Circlip Pliers for External Rings 45^o

Specification
Ref. No.	2622	3422					mm	"	Ring Grobe
58 - 030	.	.					135	5 1/2	A02	3 - 10 mm		85
58 - 100	.	.					135	5 1/2	A12	10 - 25 mm		85
58 - 190	.	.					180	7	A22	19 - 60 mm		185
58 - 400	.	.					225	9	A32	40 - 100 mm		240
58 - 850	.	.					320	12 1/2	A42	85 - 140 mm		470

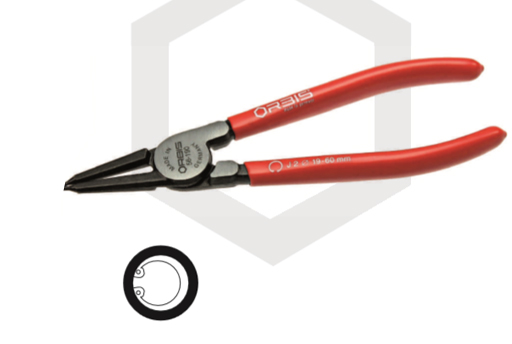

Features:
- For fitting internal circlips (DIN 471 and DIN 983) into bores from 8 - 140 mm
- Version1: straight tips (DIN 5256 Form C)

Circlip Pliers for Internal Rings

Specification
Ref. No.	2622	3422					mm	"	Ring Grobe
56 - 080	.	.					135	5 1/2	J0	8 - 13 mm		85
56 - 120	.	.					135	5 1/2	J1	12- 25 mm		85
56 - 190	.	.					180	7	J2	19 - 60 mm		185
56 - 400	.	.					225	9	J3	40 - 100 mm		240
56 - 850	.	.					320	12 1/2	J4	85 - 140 mm		470

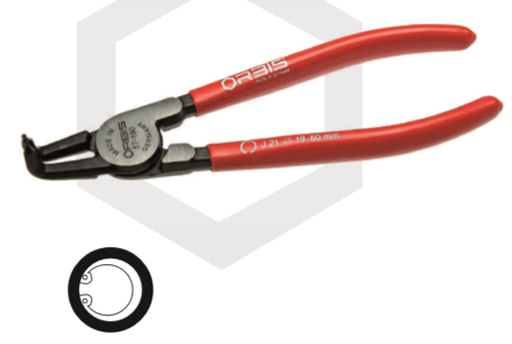

Features:
- For fitting internal circlips (DIN 471 and DIN 983) into bores from 8 - 140 mm
- Version2: 90^o straight tips (DIN 5256 Form D)

Circlip Pliers for Internal Rings 90^o

Specification
Ref. No.	2622	3422					mm	"	Ring Grobe
57 - 080	.	.					135	5 1/2	J01	8 - 13 mm		85
57 - 120	.	.					135	5 1/2	J11	12- 25 mm		85
57 - 190	.	.					180	7	J21	19 - 60 mm		185
57 - 400	.	.					225	9	J31	40 - 100 mm		240
57 - 850	.	.					320	12 1/2	J41	85 - 140 mm		470

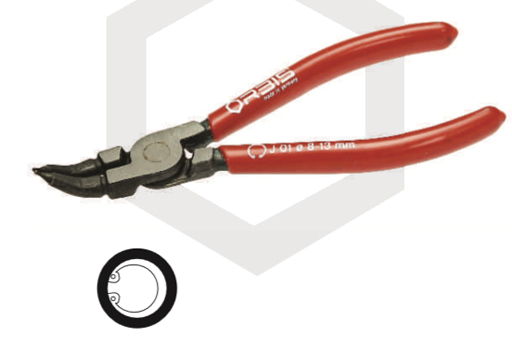

Features:
- For fitting internal circlips (DIN 471 and DIN 983) into bores from 8 - 140 mm
- Version3: 45^o angled tips

Circlip Pliers for Internal Rings 45^o

Specification
Ref. No.	2622	3422					mm	"	Ring Grobe
59 - 080	.	.					135	5 1/2	J02	8 - 13 mm		85
59 - 120	.	.					135	5 1/2	J12	12- 25 mm		85
59 - 190	.	.					180	7	J22	19 - 60 mm		185
59 - 400	.	.					225	9	J32	40 - 100 mm		240
59 - 850	.	.					320	12 1/2	J42	85 - 140 mm		470
