Niigata seiki ANGLES

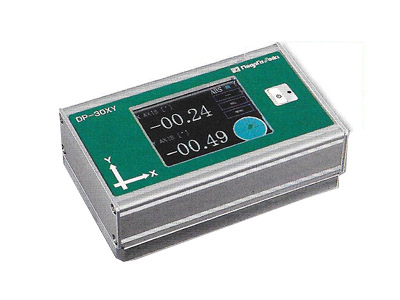

LEVELNIC DIGITAL ANGLE METER

FEATURE

  • Precision angle measurement and working reference for assembly of machinery, tooling , jigs, etc.
  • Easy to read, touch-panel Color LCD

SPECIFICATION

  • Measurement Range:±30°
  • Resolution:0.01 ° (0.1mm/m) switchable
  • Readout Accuracy: ±0.05° (at 20°C)*Temperate dependent factor of 0.015%/°C
  • XY Orthogonal accuracy :1%

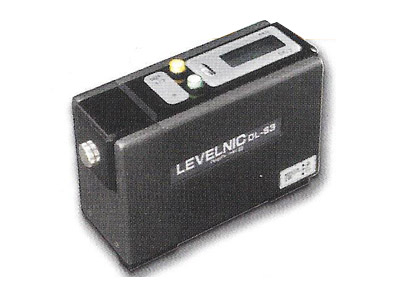

LEVELNIC

SPECIFICATION

Measuring Range01 ± 5.00mm/m • ± 0.286°
Minimum Reading± 0.001 mm/m·± 0.0001°(0 ± 2mm/m·O ± 0.115°)
Accuracy*2± 0.01mm/m·± 0.001° 17 23°( ± 0.85%rdg(O ± 2mm/m·O ± 0.115°)
± 1.0%rdg(± 2 ± 5mm/m•± 0.115° ± 0.286'
O ~ 40°( ± 2.6%rdg (O ± 2mm/m·O ± 0.115°)
± 2.7%rdg(± 2 ± 5mrn/m·± 0.115° ± 0.286°
Output SignalWithin± 0.005mm/m•± 0.0003°
RepeatabilityConforms to RS-232C
1 : For DEG(') Display mode, "O (Zero)" before the decimal point is not displayed. For0.001mm/m (0.0001°) display mode, maximum reading which can be displayed s less than± 1.999mm/m(±0.1145°)
2 : % rdg indicates the percentage of displayed value

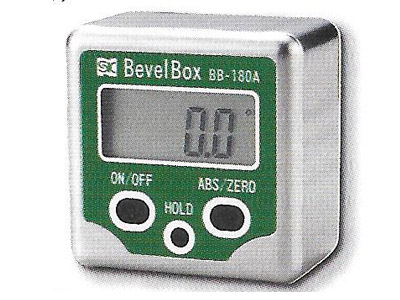

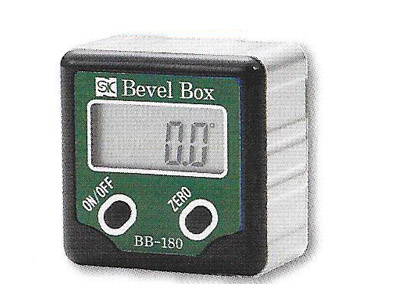

BEVEL BOX

MATERIAL

Measuring RangeResolutionAccuracy*2Repeatability
± 180.0° 0.1° ± 0.2° 0.1°
* Quantization Error ( ± 1 digit ) not included

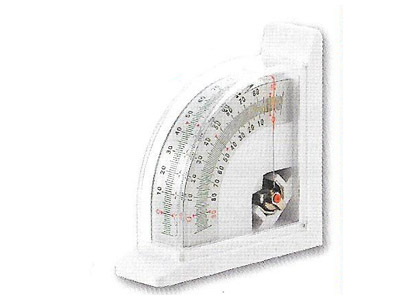

Analog type goniometer with magnetic base

SPECIFICATIONS

Measuring range : O 90 °
Graduation : 1°c
Accuracy: ±0.5°

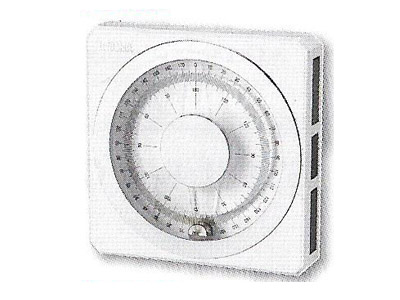

LEVEL METER

Analog type goniometer with magnet for vertical surfaces

SPECIFICATIONS

Measurement range : O 360 ° Graduation : 1 e Reading accuracy: ±0.5°
