Portable（Knob operation, Up to 50N）

- Capacity:2～50N（※1）
- The sample maximum height:80mm（※2）

- Easy knob operation

With a tripod, you can use it for wider range of testing applications. You need an optional adaptor to mount it on a tripod.

Since it is lightweight, you can carry it to various places. You can also fix it on wall by screws.

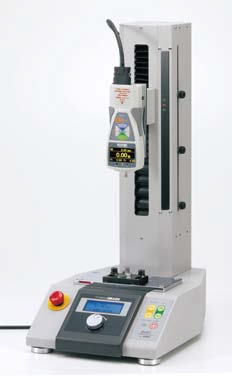

Compact and Vertical（Motorized, Up to 500N）

- Capacity:2～500N（※1）
- The sample maximum height:235mm（※2）
- Speed:10～300mm/min(Standard)

You can set up testing speed digitally.
It is compact enough to be put on a desk

Compact and Horizontal（Motorized, Up to 500N）

- Capacity:2～500N（※1）
- The sample maximum height:245mm（※2）
- Speed:10～300mm/min（Standard）

You can set up testing speed digitally. It is compact enough to be put on a desk.

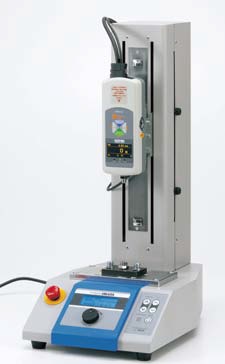

Multifunctional and Accurate（Motorized, Up to 1000N）

- Capacity:2～1000N（※1）
- The sample maximum height:320mm（※2）
- Speed:0.5～600mm/min（Standard）

You can set the travel distance to move a force gauge digitally. You can also store test requirements in it.

Since this test stand has high intensity, you can measure force and displacement more accurately

High Capacity（Motorized, Up to 2500N）

- Capacity:2～2500N（※1）
- The sample maximum height:320mm（※2）
- Speed:10～300mm/min（Standard）

You can set up testing speed digitally. You can measure force up to 2500N.
