Accurately / Precisely

It captures torque values accurately due to its high sampling rate (2000Hz).
It is designed to reduce weight influence by its bearing mechanism for greater accuracy

User friendly

High Luminance Organic EL display Clear organic display
has excellent readability.
8 languages available
Setting menu in 8 languages helps easy operation.

Making efficient

High working efficiency due to manual operation
You can easily capture peak value using peak hold function.
You can pick out defective products easily using OK/NG judgement function.

Easy data management on PC

Data capturing software ZT-Logger is included
-It sends 10 data/sec
-It automatically detects maximum and minimum values.
-It saves data in CSV format.
Graphing by optional force capturing software The software shows torque vs time graphically on PC in real time (at Max. 2000Hz)
Go to page 08 for further information.

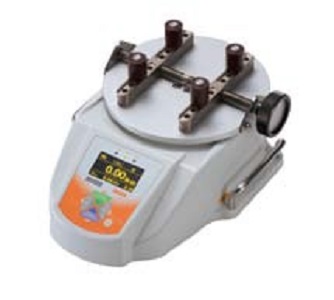

DTXS Standard Type

Size:Approx.W233×D305×H87mm  (withiout the table and the pins.)
Weight:Approx.4.5kg  (including Standard table and 4 pc Standard pins.)

DTXA High-functional type

DTXA series include all the functions of DTXS series, with a few additional features below.

Inputting/Outputting Angle

HTGA indicates both torque and angle on its monitor, combined with an angle meter.
Torque-Angle Analysis with HTGA Go to page 11

Capturing 2 Peaks

You can capture 1st and 2nd peaks of measurement.

Saving Data to USB Flash Drive Saving Data to USB Flash Drive

You can save continuous data into USB flash drive at 100Hz.
In other words, you can save data even without PC

Specifications:

Accuracy ±0.5%F.S.±1digit
Unit of measurement N-m, N-cm, kgf-m, kgf-cm, lbf-in, ozf-in(switchable)(※1)
Display 4-digit Organic EL
Sampling rate 2000 data / sec at maximum
Function Customized display (header and footer), Peak hold (clockwise and counter-clockwise), Internal 1000 points data memory, Comparator (judgment of OK or NG), Reversible display, Sign inversion, Zero clear timer, +NG alarm, Off timer (auto power off), Dumping,Time display 1st/2nd peak(only for DTXA), Angle detection at torque peak value(only for DTXA)(※2),Angle zero reset at selected torque(only for DTXA)(※2)
Output USB, RS232C, Mitutoyo digimatic (※3), 2 VDC analog output (D/A),Comparator 3 steps (-NG/OK/+NG), Overload alarm Sub comparator 2 steps (output of large or small judgment)(only for DTXA), USB flash drive(only for DTXA ), Angle(displacement)(only for DTXA) (※2)
Accessory CD driver (including simple software for data logging), USB cable, AC adapter, Carrying case, Instruction manual, Inspection certificate,L wrench, Handles (10N-m range only) USB flash drive adapter(only for DTXA)(※4)

※1 These are the specifications for International model. Please note that this unit is different from Japanese domestic model.
※2 Angle(displacement) scale is necessary to valid this function.
※3 Not always available for Mitutoyo digimatic products.
※4 USB flash drive is not included.


Model CapacityDisplay
DTXS-2N 2 N-m (200N-cm) 2.000N-m (200.0N-cm)
DTXS-5N 5 N-m (500N-cm) 5.000N-m (500.0N-cm)
DTXS-10N 10N-m (1000N-cm) 10.00N-m (1000N-cm)
DTXA-2N 2 N-m (200N-cm) 2.000N-m (200.0N-cm)
DTXA-5N 5 N-m (500N-cm) 5.000N-m (500.0N-cm)
DTXA-10N 10N-m (1000N-cm) 10.00N-m (1000N-cm)

The above-mentioned model comes with a standard table and standard pins.
We provide it without the table and the pins, or one with a smaller table.
The model without any tables: DTXS-○○N-Z or DTXA-○○N-A
The model with a smaller table: DTXS-○○-N-ST or DTXA-○○N-ST



Accurately / Precisely

It captures torque values accurately due to high sampling rate (2000Hz).
HTGS and HTGA are designed to reduce the influence by its bearing mechanism, achieving greater accuracy
(Torque measurement is influenced by bending/compression/tension force during measurement, decreasing accuracy.)

User friendly

High Luminance Organic EL display
Clear organic display has excellent readability.
8 languages available
Setting menu in 8 languages helps easy operation

Making efficient

OK/NG judgement
You can pick out defective products easily. (+NG or ‒NG light goes on when the torque is over or under the borderline that you decide.)
3 line indicator
A torque value is indicated in the middle tier, and you can select information as required in the upper and lower tiers.
The available information is such as time / the number of memory / set points etc.
Connecting to / interlock external equipment

Varieties of Torque Can Be Measured

HTGS/HTGA can handle a wide range of torque testing applications using different attachments.
 Go to page 06 for further information.

Easy data management on PC Easy data management on PC

Data capturing software ZT-Logger is included
-It sends 10 data/sec
-It automatically detects maximum and minimum values.
-It saves data in CSV format.
Graphing by optional force capturing software
The software shows torque vs time graphically on PC in real time (at Max. 2000Hz)
Go to page 08 for further information

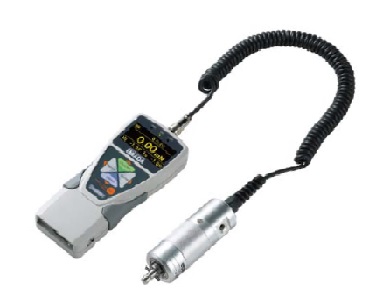

HTGS Standard Type

Size(The indicator only):Approx.W75XD34XH188mm
Weight(The indicator only):Approx.490g
※This product is NOT including the attachment on the top of the gauge

HTGA High functional type

HTGA series include all the functions of HTGS series, with a few additional features below.

Inputting/Outputting Angle

HTGA indicates both torque and angle on its monitor, combined with an angle meter.  Torque-Angle Analysis with HTGA ‒ Go to page 12

Capturing 2 Peaks Capturing 2 Peaks

You can capture 1st and 2nd peaks of measurement

Saving Data to USB Flash Drive Saving Data to USB Flash Drive

You can save continuous data into  USB flash drive at 100Hz.
In other words, you can save data even without PC.

Specifications:

Accuracy ±0.5%F.S.±1digit
Unit of measurement N-m, N-cm, kgf-m, kgf-cm, lbf-in, ozf-in(Switchable)(※1)
Display 4-digit Organic EL
Sampling rate 2000 data / sec at maximum
Function Customized display (header and footer), Peak hold (clockwise and counter-clockwise), Internal 1000 points data memory, Comparator (judgment of OK or NG), Reversible display, Sign inversion, Zero clear timer, +NG alarm, Off timer (auto power off), Dumping,Time display 1st/2nd peak(only for HTGA), Angle detection at torque peak value(Only for HTGA)(※2),Angle zero reset at selected torque(only for HTGA)(※2)
Output USB, RS232C, Mitutoyo digimatic (※3), 2 VDC analog output (D/A),Comparator 3 steps (-NG/OK/+NG), Overload alarm Sub comparator 2 steps (output of large or small judgment) (only for HTGA), USB flash drive(only for HTGA ), Angle(displacement)(only for HTGA) (※2)
Accessory CD driver (including simple software for data logging), USB cable, AC adapter, Carrying case, Instruction manual, Inspection certificate, L wrench, Handles (10N-m range only) USB flash drive adapter(only for HTGA)(※4)

※1 These are the specifications for International model. Please note that this unit is different from Japanese domestic model.
※2 Angle(displacement) scale is necessary to valid this function.
※3 Not always available for Mitutoyo digimatic products.
※4 USB flash drive is not included.
◎No attachments are included.


Model CapacityDisplay
HTGS-0.5N 50N-cm 50.00N-cm
HTGS-2N 2N-m(200N-cm) 2.000N-m(200.0N-cm)
HTGS-5N 5N-m(500N-cm) 5.000N-m(500.0N-cm)
HTGS-10N 10N-m(1000N-cm) 10.00N-m(1000N-cm)
HTGA-0.5N 50N-cm 50.00N-cm
HTGA-2N 2N-m(200N-cm) 2.000N-m(200.0N-cm)
HTGA-5N 5N-m(500N-cm) 5.000N-m(500.0N-cm)
HTGA-10N 10N-m(1000N-cm) 10.00N-m(1000N-cm)



You can easily measure torque of a motor screw driver and torque driver. It is ideal for daily torque maintenance.
OW-025 OW-10 OW-20 OW-60
RangeMax. 0.25N-mMax. 1.0N-mMax. 2.0N-mMax. 6.0N-m
Mechanical life10,000 times8,000 times5,000 times5,000 times
Bit joint partM2.6+Pan head screwM3.0+Pan head screwM4.0+Pan head screwM6.0+Panhead screw
Body dimensionφ28×44φ32×51φ32×51φ32×69

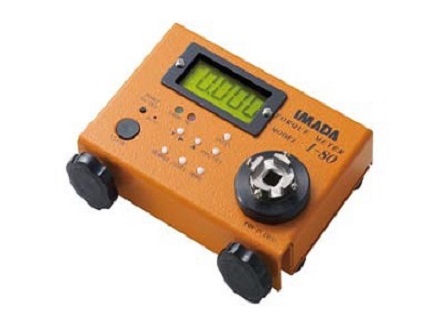

ModelI-8I-80
Measuring range※1 0.20~78.60 cN-m 0.020~7.860 N-m
0.020~8.000 kgf-cm 0.20~80.00 kgf-cm
0.020~6.970 lbf-in 0.20~69.70 lbf-in
2.0~786.0 cN-m
Accuracy +/- 0.5% (reading value) or +/-3digit in less than 499 digit.
Display 4 digits LCD display
Measuring direction CW-CCW (Right turn /Left turn)
Measuring mode P-P(Peak-hold), T-R(Track), P-D(Peak-down),C(real time data output)
Real-time output Output torque at every 1/180 seconds
Data output ASCII (baud rate 19200)
Functions Upper/ Lower value setting, Pass-fail decision, Internal memory,
Auto zero reset function, Auto power-off (in 10 minutes with no
operation), Max./ Min./Ave. display, Zero Reset function
Battery Ni-Cd 1.2v×5 cell(700mAh) 300 times
Charging time/Usable time Approx.3 hours/ Approx. 12 hours continuous use after full charge.
Socket joint part (Detecting parts shape Square 20 mm / Square 9.5 mm
Included items (1 each) Driver adapter OW-025/OW-10 Driver adapter OW-20/OW-60
Attache case, battery charger, inspection certificate, calibration certification, traceability system diagram.


With this unit, you can easily analyze the relation between torque and angle.

You can measure angle according to rotation, drawing a torque-angle graph.
This system is ideal for functionality assessment according to constant angle of rotation.

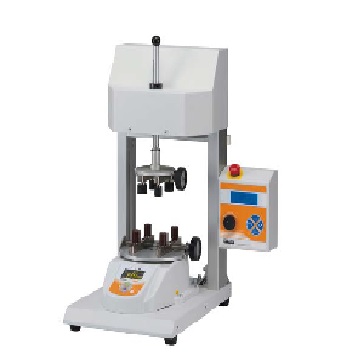

Configuration

A Torque Stand
Upper side rotates at a set speed.
You can set up test requirements such as a starting speed, a returning speed, pause at set torque value, and more.

Included Attachments

It comes with 2 attachments; MT-TB for upper side, and DT-TB for lower side.
You can apply other optional attachments instead to fit your test samples.

A Torque Measurement Instrument

It displays torque and angle.
You can easily take it on/off by screws when required.

A Connection Cable

It connect a torque tester with a torque stand for control.

Software

It shows torque vs angle graphically. You can take torque and angle data into your PC at real time (Max.2000Hz), drawing a smooth graph.
Trigger function enables automatic graph drawing.

Specifications:

Model TAA-MTS-○○N-TB(※1)
Unit Torque N-m/N-cm, kgf-m/kgf-cm, lbf-in/ozf-in(switchable)※
Angle °(degree)
Range 2N-m(200N-cm),5N-m(500N-cm),10N-m(1000N-cm)
Resolution Torque 4 digit (Ex:The resolution of TAA-MTS-5N 0.001N-m[0.1N-cm])
Angle 0.001° (on Force Recorder Professional)0.01° (on Torque gauge display)
Accuracy Torque ±0.5%F.S. +/-1 digit
Angle ±0.1°+/-1 digit
Model:Allowable sample height TAA-MTS-□□N-TB:140mm TAA-MTS-□□N-L-TB:240mm TAA-MTS-□□N-2L-TB:340mm
※We can extend the height as custom-made. Please contact us. ※We can handle a wide rage of sample’s height other than above-mentioned height.※Please use extension shaft(page 10) as required.
Torque data sampling rate 2000 data /sec
Torque display upgrade 16 data/sec
Output USB,Serial(RS232C), Analogue (Approx.±2V),Comparator,Overload,Sub comparator,USB flash drive ※USB flash drive is not included.
Function Torque gauge Customized display(header and footer )/ Peak Hold mode(CW/CWW)/ Internal memory (1000 data)/ Comparator(OK/NG judgment)/ Reversible display/ Sign inversion/ Zero clear timer/ +NG alarm/Off timer(Auto power off)/Damping/ Time display/ 1st 2nd peak/ Setting lock
Test Stand Manual mode, JOG mode, Speed adjustment
Link function(※2) Angle detection at torque peak / Angle zero reset at the selected torque/Automatic mode (CONTINUOUS,ONE WAY), Torque control, Overload prevention
Power supply Torque gauge Rechargeable battery (8 hour using /2 hour full charge)
Test stand AC100V~240V
Operating environment Temperature:0 ‒ 40 degree Celsius Humidity: 20 -80%RH
Accessory Graphing software Force-Recorder Professional, Driver CD-ROM(with data logger simple software), Power cable, AC adapter, Torque gauge connecting cable(CB-728), USB cable, Spare fuse, Instruction manual, Inspection certificate, tool, packing cardboard box
Included attachments(※3) Lower side: DT-TB (refer to 04), Upper side: MT-TB (refer to 10)

※Japanese domestic model does not indicate kgf (kgf-m, kgf-cm) and lbf (lbf-in, ozf-in).
※1 Please select one from 2N, 5N, or 10N
※2 You need to connect a torque gauge with the included connecting cable to activate this function.
※3 We provide a model without any attachments (TAA-MTS+□N-Z). The model is recommended when you use other IMADA optional ones, or your own chuck
