Home/Our Products Range/Imada/Motorized Test Stand

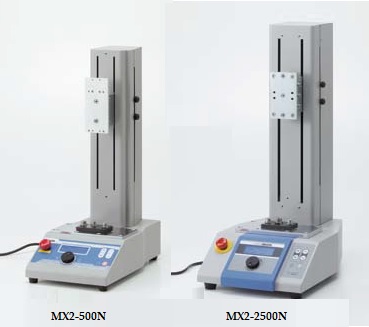

MX2 series

Connect with External Devices

Application examples ofhow cables are used

Analyze ForceDisplacementRelation

Force-DisplacementAnalysis Unit


Option
  • Length Scale
  • FA version
  • Long Stroke
  • Speed Range Change
  • Output and Input External Signal

Specifications:

Lists MX2-500N MX2-1000N MX2-2500N
Capacity 500N 1000N 2500N
Speed 10-300mm/min 10-300mm/min 10-300mm/min
Maximum Sample Height（※1） Approx.235mm Approx.300mm Approx.320mm
Weight Approx.18kg Approx.19kg Approx.26kg
Size Approx.W220xD380xH562mm Approx.W280xD410xH660mm Approx.W280xD410xH644mm

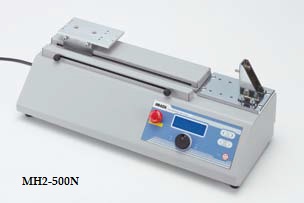

MH2-500N

Connect with External Devices

Application examples for using cables

Analyze ForceDisplacementRelation

Force-DisplacementAnalysis Unit


Option
  • Length Scale
  • FA version
  • Speed Change
  • Output and Input External Signal

Specifications:

Lists MX2-500N
Capacity 500N
Speed 10-300mm/min
Maximum Sample Height（※1） Approx.245mm
Weight Approx.14kg
Size Approx.W554xD220xH219mm

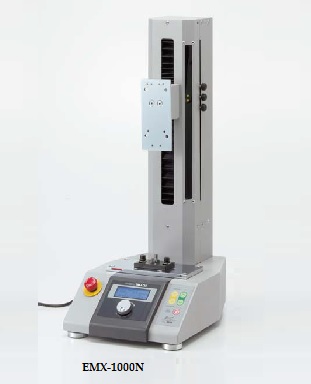

EMX-1000N

The wide range of speed (0.5-600mm/min) and travel setting function fulfill various measuring requirements.
It has the highest rigidity, offering greater accuracy.
You can set travel digitally, equalizing measuring conditions.
It stores maximum 5 measuring patterns in itself, improving measuring efficiency.
It equips I/O connector to allow for communications with external devices, so that you can build it into your equipment to improve measurement efficiency.

Connect with External Devices

Application examples for using cables

Analyze ForceDisplacementRelation

Force-DisplacementAnalysis Unit


Option
  • FA version
  • Long Stroke

Specifications:

Lists EMX-1000N
Capacity 1000N
Speed 0.5-600mm/min
Maximum Sample Height（※1） Approx.320mm
Weight Approx.23.5kg
Size Approx.W280xD410xH643mm

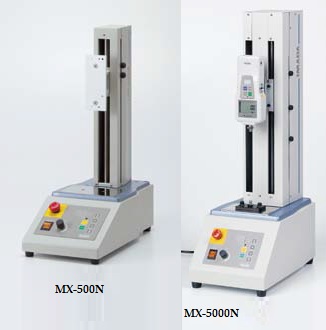

MX series

Option
  • Speed/ Length Meter
  • Length Scale
  • Long Stroke（except MX-5000N）
  • Speed Change

Specifications:

Lists MX2-500N MX2-1000N MX2-2500N
Capacity 500N 1000N 2500N
Speed 10-300mm/min 8-240mm/min 10-300mm/min
Maximum Sample Height（※1） Approx.235mm Approx.420mm Approx.340mm
Weight Approx.13kg Approx.24kg Approx.30kg
Size Approx.W214xD428xH573mm Approx.W263xD368xH903mm Approx.W250xD420xH816mm

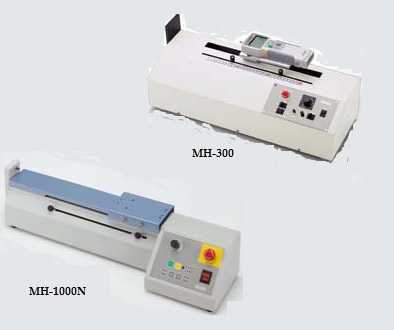

MH-1000N・MH-300

Option
  • Speed/ Length Meter
  • Length Scale
  • Speed Change（MH-1000N only）

Specifications:

Lists MX2-1000N MX2-300
Capacity 1000N 3000N
Speed 6-180mm/min 8-240mm/min
Maximum Sample Height（※1） Approx.280mm Approx.295mm
Weight Approx.14kg Approx.29kg
Size Approx.W700xD195xH210mm Approx.W700xD252xH227mm
