DSV improves reproducibility in hand-held use.
DSV is an advanced model equipped with tilt-sensing function,
Internal memory (1000) function, and more.
・Ideal for hand-held use due to the hand fitting design and the lightweight
・Easy data management and OK judgement
・In capacity up to 1000N, handling a wide range of force testing
| Model | Capacity | Display | Resolution | Thread | Supplied attachments |
| DSV(DST)-2N | 2N | 2.000N | 0.001N | M6 | A1~A6 |
| DSV(DST)-5N | 5N | 5.000N | 0.001N | ||
| DSV(DST)-20N | 20N | 20.00N | 0.01N | ||
| DSV(DST)-50N | 50N | 50.00N | 0.01N | ||
| DSV(DST)-200N | 200N | 200.0N | 0.1N | S1(SR1*)~S6 | |
| DSV(DST)-500N | 500N | 500.0N | 0.1N | ||
| DSV(DST)-1000N | 1000N | 1000N | 1N |
Specifications:
| Model | DSV | DST |
| Accuracy | ±0.2％F.S.(full scale)±1digit | |
| Unit | N(mN, kN), kgf(gf), lbf (*1) | |
| Display | 4-digit LCD | |
| Sampling rate | Max. 1000 data/sec | |
| Battery |
Approx.30 hours（when back light is off） Approx.14 hours (when back light is on) （need 4.5 hours for full charge） |
|
| Overload | Approx.200%F.S. | |
| Power | Nickel-Metal Hydride battery (NiMH battery) , USB charge(PC, mobile battery, AC adapter) | |
| Operating environment | Temperature：0 - 40°C, Humidity：20 -80%RH | |
| Function | Peak hold(Tensile or compression)/Comparator(OK Judgement)/Sensitivity(3 steps)/ Reversible display /Sign inversion/Setting lock/Date & Time/Off timer (Auto power-off)/ Reminder for calibration schedule/Overload alarm | |
| Tilt-sensing alarm/Continuity peak mode(*2) /Internal memory (1000 point) |
||
| Output | USB/RS232C | |
| Overload alarm | Alarm to notify “near-overload state”: Approx. 90%F.S. (Alarm sound) Alarm to notify “overloaded state” : Approx.110％F.S.（Alarm sound／Indication blinking） | |
| Weight | Aprrox.460g (*3) | |
| Dimensions | Refer to Dimensions on page 5. | |
| Accessories |
Force Logger(Data capturing software)/USB cable/AC adaptor/ Attachments (The types of attachments vary by models)/Carrying case/ Instruction manual/Inspection certificate |
|

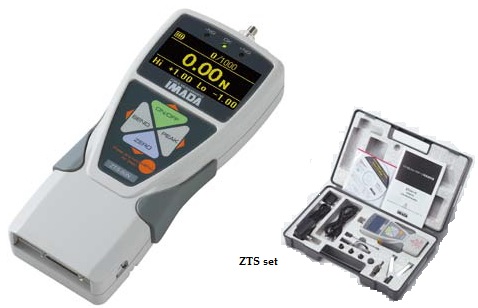

This is user-friendly and functional model.
This series of gauges can be used for a wide range of measuring purposes from peak measurement to
highly repeatable measurement.
The gauges come with data capturing software
Standard Type Model List:
| Model | Capacity | Display | Thread |
| ZTS-2N | 2N | 2.000N/2000ｍN(200.0gf) |  |
| ZTS-5N | 5N | 5.000N/5000ｍN(500.0gf) | |
| ZTS-20N | 20N | 20.00N(2.000kgｆ) | |
| ZTS-50N | 50N | 50.00N(5.000kgｆ) | |
| ZTS-100N | 100N | 100.0N(10.00kgf) | |
| ZTS-200N | 200N | 200.0N(20.00kgf) | |
| ZTS-500N | 500N | 500.0N(50.00kgf) | |
| ZTS-1000N | 1000N | 1000N/1.000kN(100.0kgf) |
| Accuracy | +/-0.2%F.S.+/-1digit(Excepted sensor separated model) |
| Unit of measurement(※1) | N, kgf, lbf （※1） |
| Display | 4-digit Organic EL |
| Sampling rate | 2000Hz (2000 data / sec) at maximum |
| Function | Customized display (header and footer), Peak hold (tension and compression), Internal 1000 points data memory, Comparator (judgement of OK or NG), Reversible display, Sign inversion, Zero clear timer, +NG alarm, Off timer (auto power off), Dumping, Time display |
| Output | Temperature: 0 to +40 degree Celsius, Humidity: 20 to 80%RH |
| Operating environment | USB, RS232C, Mitutoyo digimatic (※2), ±2 VDC analog output (D/A), Comparator 3 steps (-NG/OK/+NG), Overload alarm |
| Battery | 8 hours (2 hours full charge) |
| Accessory(※5) | Attachments(※3), AC adapter, Inspection certificate, CD-driver(including simple software for data logging), USB cable, Carrying case. |

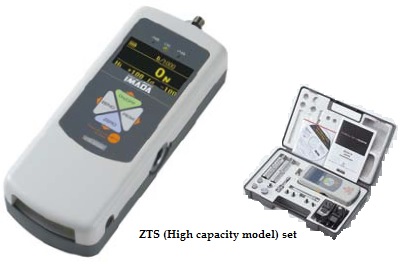

The load capacity ranges from 2500N to 5000N.
This model has the same functions and
performance as ZTS series basic model.
Size：Approx.W83×D44.5×H221mm
Weight：Approx.1100g
Specifications:
High Capacity Model List| Model | Capacity | Display | Thread |
| ZTS-2500N | 2500N | 2500N (2.500kN) |  |
| ZTS-5000N | 5000N | 5000N (5.000kN) |

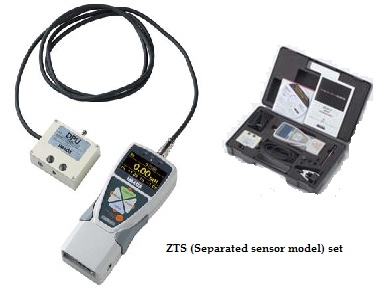

It is ideal for installing into facilities or measuring
under special circumstance due to an external sensor.
We offer a wide range of sensors such as waterproof,
wide temperature range, pen shape, and more to
meet your force measurement requirement.
This model has the same functions and performance as ZTS series basic model.
Specifications:
Sensor separate type Model List| Model | Capacity | Display | Thread |
| ZTS-DPU-2N | 2N | 2.000N (2000mN) | |
| ZTS-DPU-5N | 5N | 5.000N (5000mN) | |
| ZTS-DPU-10N | 10N | 10.00N | |
| ZTS-DPU-20N | 20N | 20.00N | |
| ZTS-DPU-50N | 50N | 50.00N | |
| ZTS-DPU-100N | 100N | 100.0N | |
| ZTS-DPU-200N | 200N | 200.0N | |
| ZTS-DPU-500N | 500N | 500.0N |
| Model | Capacity | Display | Thread |
| ZTS-DPU-1000N | 1000N | 1000N (1.000kN) | |
| ZTS-DPU-2000N | 2000N | 2000N (2.000kN) | |
| ZTS-DPU-5000N | 5000N | 5000N (5.000kN) | |
| ZTS-DPU-10kN | 10kN | 10.00kN | M18P1.5 Depth22 female screw |
| ZTS-DPU-20kN | 20kN | 20.00kN |

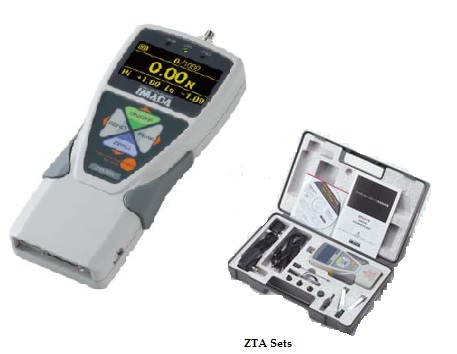

ZTA has all the functions of ZTS(Page 09) with a few more additional features, including I/O for displacement, saving data to USB flash drive, and more.
●ZTA series features
ZTA series model list:
| Model | Capacity | Display | Thread |
| ZTA-2N | 2N | 2.000N/2000ｍN(200.0gf) | |
| ZTA-5N | 5N | 5.000N/5000ｍN(500.0gf) | |
| ZTA-20N | 20N | 20.00N(2.000kgｆ) | |
| ZTA-50N | 50N | 50.00N(5.000kgｆ) | |
| ZTA-100N | 100N | 100.0N(10.00kgf) | |
| ZTA-200N | 200N | 200.0N(20.00kgf) | |
| ZTA-500N | 500N | 500.0N(50.00kgf) | |
| ZTA-1000N | 1000N | 1000N/1.000kN(100.0kgf) |
| Accuracy | +/-0.2%F.S.+/-1digit |
| Unit of measurement(※1) | N, kgf, lbf（※1） |
| Display | 4-digit Organic EL |
| Sampling rate | 2000Hz (2000 data / sec) at maximum |
| Function | Customized display (header and footer), Peak hold (tension and compression), Internal 1000 points data memory, Comparator (judgement of OK or NG), Reversible display, Sign inversion, Zero clear timer, +NG alarm, Off timer (auto power off), Dumping, Time display, 1st/2nd peak, Displacement detection at force peak value, Displacement zero reset at selected force |
| Output | USB, RS232C, Mitutoyo digimatic (※2), 2 VDC analog output (D/A), Comparator 3 steps (-NG/OK/+NG), Overload alarm, Sub comparator 2 steps (output of large or small judgment), USB flash drive(※3), Displacement(※4) |
| Operating environment | Temperature: 0 to +40 degree Celsius, Humidity: 20 to 80%RH |
| Battery | 8 hours (2 hours charge) |
| Accessory(※5) | Attachments (※6),AC adapter, Inspection certificate, CD driver (including simple software for data logging), USB cable, Carrying case, Adaptor for USB flash drive. |

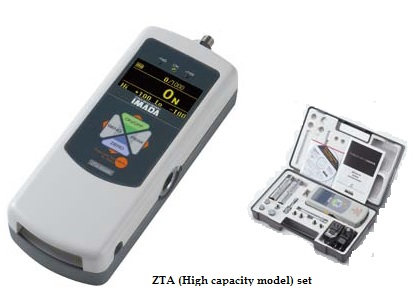

The load capacity ranges from 2500N to 5000N.
This model has the same functions and
performance as ZTA series basic model.
Specifications:
High Capacity Model List| Model | Capacity | Display | Thread |
| ZTA-2500N | 2500N (250kgf) | 2500N/2.500kN (250.0kgf) | |
| ZTA-5000N | 5000N (500kgf) | 5000N/5.000kN (500.0kgf) |

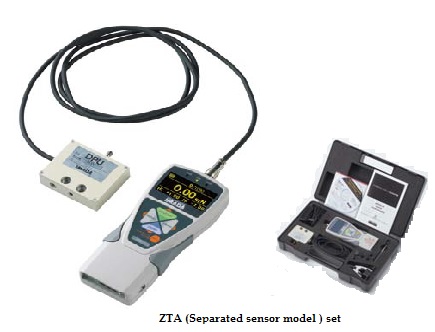

It is ideal for installing into facilities or measuring
under special circumstance due to an external sensor.
We offer a wide range of sensors such as waterproof,
wide temperature range, pen shape, and more to meet
your force measurement requirement.
Specifications:
Sensor separate type Model List| Model | Capacity | Display | Thread |
| ZTA-DPU-2N | 2N | 2.000N (2000mN) | |
| ZTA-DPU-5N | 5N | 5.000N (5000mN) | |
| ZTA-DPU-10N | 10N | 10.00N | |
| ZTA-DPU-20N | 20N | 20.00N | |
| ZTA-DPU-50N | 50N | 50.00N | |
| ZTA-DPU-100N | 100N | 100.0N | |
| ZTA-DPU-200N | 200N | 200.0N | |
| ZTA-DPU-500N | 500N | 500.0N |
| Model | Capacity | Display | Thread |
| ZTA-DPU-1000N | 1000N | 1000N (1.000kN) | |
| ZTA-DPU-2000N | 2000N | 2000N (2.000kN) | |
| ZTA-DPU-5000N | 5000N | 5000N (5.000kN) | |
| ZTA-DPU-10kN | 10kN | 10.00kN | M18P1.5 Depth22 female screw |
| ZTA-DPU-20kN | 20kN | 20.00kN |
