Shraddha Impex

The Most Simple Model
Compression and Tension Compatible
Size：Approx.W67×D48×H232.5mm
Weight：Approx.630g

Specifications:

Accuracy	±0.3%F.S. or less
Division	100lines(※1)
Reading method	Real time/Peak hold(Switchable)
Standard accessories	Attachment 6pcs(※3)・the instruction manual・the carry case・Inspection certificate etc.

Model lists:

Model	Capacity	Resolution
FB-10N	10N	0.1N
FB-20N	20N	0.2N
FB-30N	30N	0.25N
FB-50N	50N	0.5N
FB-100N	100N	1N
FB-200N	200N	2N
FB-300N	300N	2.5N
FB-500N	500N	5N

International model lists(※2):

Model	Capacity	Resolution	Thread
FS-1K	1kgf	10gf
FS-2K	2kgf	20gf
FS-3K	3kgf	25gf
FB-5K	5kgf	50gf
FB-10K	10kgf	100gf
FB-20K	20kgf	200gf
FB-30K	30kgf	250gf
FB-50K	50kgf	500gf
Model	Capacity	Resolution	Thread
FB-5lb	5lbf	0.05lbf
FB-10lb	10lbf	0.1lbf
FB-20lb	20lbf	0.2lbf
FB-30lb	30lbf	0.25lbf
FB-50lb	50lbf	0.5lbf
FB-100lb	100lbf	1lbf

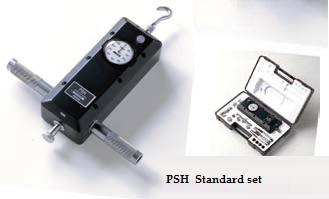

High Capacity Model in capacity from 500N to 3000N
Compression and Tension Compatible
Size：Approx.95×D63.4×290mm
Weight：Approx.3.1kg

Specifications:

Accuracy	±0.1%F.S. or less
Division	100lines(※1)
Reading method	Real time/Peak hold(Switchable)
Standard accessories	Attachment 6 pcs(※3)・the instruction manual・the carry case・Inspection certificate etc.

Model lists:

Model	Capacity	Resolution
PSH-500N	500N	5N
PSH-1000N	1000N	10N
PSH-2000N	2000N	20N
PSH-3000N	3000N	25N

International model lists(※2):

Model	Capacity	Resolution	Thread
PSH-50K	50kgf	0.5kgf
PSH-100K	100Kkgf	1kgf
PSH-200K	200kgf	2kgf
PSH-300K	300kgf	2.5kg
Model	Capacity	Resolution	Thread
PSH-200lb	200lbf	2lbf
PSH-300lb	300lbf	2.5lbf
PSH-500lb	500lbf	5lbf
FB-30lb	30lbf	0.25lbf

High Accuracy Model
Compression and Tension Compatible
Size：Approx.W67×D48×H232.5mm
Weight：Approx.630g

Specifications:

Accuracy	±0.1%F.S. or less
Division	100lines(※1)
Reading method	Real time/Peak hold (Switchable)
Standard accessories	Attachment 8pcs(※3)・the instruction manual・the carry case・Inspection certificate etc.

Model lists:

Model	Capacity	Resolution
PS-5N	5N	0.05N
PS-10N	10N	0.1N
PS-20N	20N	0.2N
PS-30N	30N	0.25N
FB-100N	100N	1N
PS-50N	50N	0.5N
PS-100N	100N	1N
PS-200N	200N	2N
PS-300N	300N	2.5N
PS-500N	500N	5N

International model lists(※2):

Model	Capacity	Resolution	Thread
PSS-0.5K	500gf	5gf
PSS-1K	1kgf	10gf
PSS-2K	2kgf	20gf
PSS-3K	3kgf	25gF
PS-5K	5kgf	50gf
PS-10K	10kgf	100gf
PS-20K	20kgf	200gf
PS-30K	30kgf	250gf
PS-50K	50kgf	500gf
Model	Capacity	Resolution	Thread
PS-5lb	5lbf	0.05lbf
PS-10lb	10lbf	0.1lbf
PS-20lb	20lbf	0.2lbf
PS-30lb	30lbf	0.25lbf
PS-50lb	50lbf	0.5lbf
PS-100lb	100lbf	1lbf

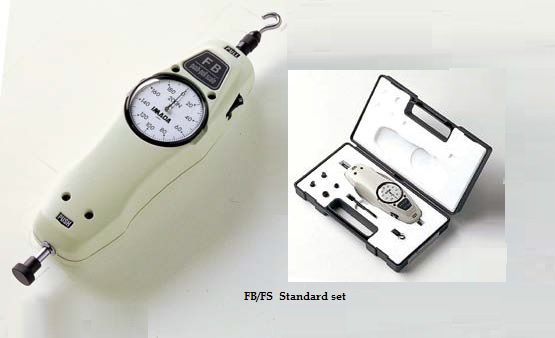

FB series
