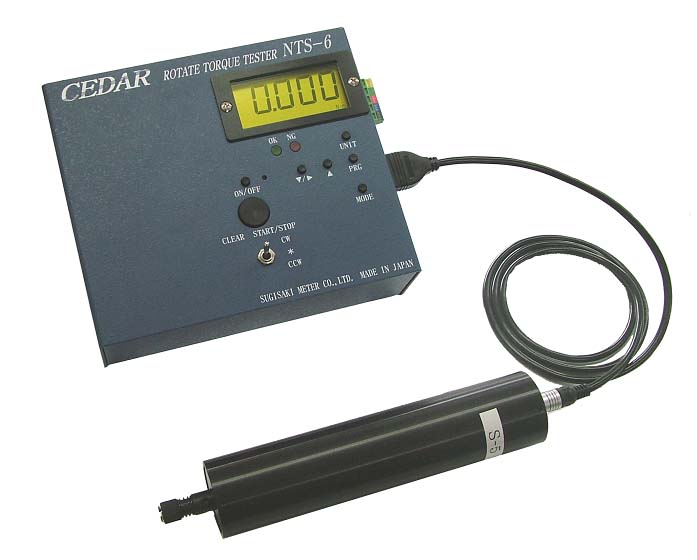

Measurement by the high precision gearmotor and the strain meter
While an output shaft carries out self-rotation, the load fluctuation of a solid of revolution is caught by the sensor.
The main features:
- Peak, Real time and RGmode.(selectable)
- Programmable High and Low set points with both audible beep and Green/Red LED indicator for uniform torque tightening or GO/NO GO testing.
- The type of series is five kinds.
It is adapted for various torque ranges (0.1 mN-m - 2 N-m).
- External input and output are also substantial.
An OK-NG output and data output External start signal input
- By RG mode (real-time output) loading, a torque wave is also simply with a personal computer.
Specifications:
| Specification | NTS-6 | |||||
| S-1 | S-2 | S-5 | S-10 | S-20 | ||
| Measuring range (at the time of Track) |
3.0～100 mN・m |
3.0～200 mN・m |
0.030～0.5 N・m |
0.030～1 N・m |
0.030～2N・m | |
| Accuracy | ±1％ | |||||
| 2 mN・m or Less ±3dijit | 0.2 N・mor Less ±3dijit | |||||
| Rotational frequency (at the time of no-load) |
85ｒｐｍ | 25ｒｐｍ | 13ｒｐｍ | 18ｒｐｍ | 18ｒｐｍ | |
| Display | The 4 figures digital display of LCD | |||||
| The measurement direction | CW-CCW Possible (right and left) It rotates by the motor. | |||||
| Measuring mode |
Peak operation mode (PP): Display the maximum under measurement . |
|||||
| Truck mode (GO): Always display the load torque which has started. |
||||||
| RG mode (PD): Carry out the data output of the load torque every 1/ 87 seconds. |
||||||
| Measurement start time | Time after beginning rotation until it starts measurement is set up (0.1 - 1 second). |
|||||
| Torque judging | It is in measuring range and a setup of a maximum value and a minimum value is possible.[ O.K.Iｎ the Set point ] Lamp lighting: [ NG Outside the Set point ] Error buzzer | |||||
| External input and output | Signal
output (open collector): O.K., NG Data output: ASCII Format (baud rate9600), External start switch input |
|||||
| Power supply | AC100V～240V | |||||
| bit size | φ 4 | HEX6.35 | ||||
| Outside size indicator | 165（W）×110（D）×58（H） | |||||
| Outside size detector | φ28×155< | φ37×195 | φ40×235 | |||
|
Accessories |
Inspection report, Proofreading certificate, Traceability system figure | |||||

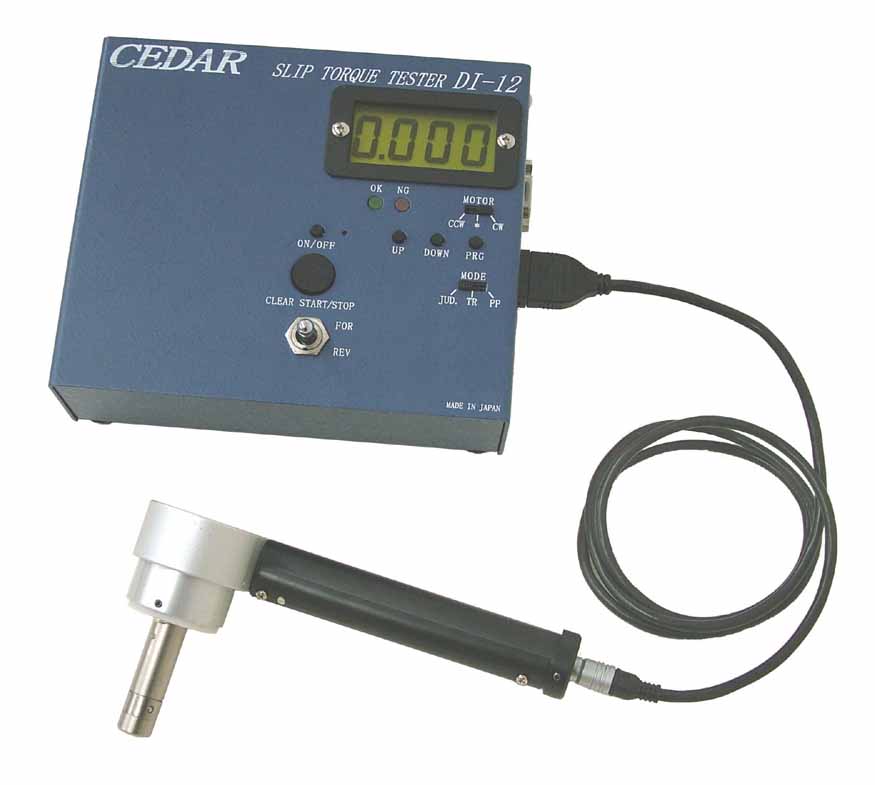

When it is going to bolt a screw by a power driver etc., output torque is inspected by the torque tester for power drivers.
This is required for the performance management of a power driver.
However, this value is not a torque value which is a value which shows the output of a driver and has become tight.
Managing torque truly is managing "the torque value of the actually tightened screw."
However, the tester which measures "the torque value of the actually tightened screw" till today did not exist.
I manufactured this machine in order to solve it.
- The check of "the torque value of the actually tightened screw" by a user's product random inspection
- Ask for the relation between "the value of a torque circuit tester", and "the torque value of the actually tightened screw". The output torque of a power driver is set up and managed.
Specifications:
| Form | DI-12-SL4 | DI-12-SL02 | DI-12-SL15 | ||
| Operating range | 0.030～4.000N・m | 1.5～200.0 mN・m | 0.30～15.00 N・m | ||
| accuracy | ±1% (500 or less digit±5digit) | ±0.5% (200 or less digit±1digit) | |||
| Display | The 4 figures digital display of LCD | ||||
| The measurement direction | CW-CCW (right and left)A display will be the display of only an absolute value. Load of + (the CW direction) and - (the direction of CCW) is carried out to a data output. | ||||
| Measure-ment Mode | P-P(peak) | The peak load value hold.Destructive torque (the CW direction) -- it loosens and torque (the direction of CCW) is measured. | |||
| T-R(truck) | A display changes with load change. | ||||
|
PD judging mode |
The judgment of slide torque and the judgment
of the yield point are performed. (Only the CW direction) |
||||
| Detection judging | If a slide torque value is detected, you will be told about by green lamp lighting.(at the time of RG mode) | ||||
| Measurement start value setup | The value which starts measurement (start of judgment operation) is set up. ( 0.001 N-m unit from 0 N-m) | ||||
| Continuation data output | A load torque value is outputted for every fixed time during measurement in RG mode. By creating a torque wave, loci, such as slide torque, yield point torque, and destructive torque, can be judged. |
||||
| Auto-power-off | Automatically power off after 5 minutes left without operation | ||||
| Bit plug form | HEX 6.35 | fai 4 | 6.35sq | ||
| Data output | ASCII format (baud rate 9600). A measurement result is outputted. | ||||
| Outside dimension | Detector | fai 44×190 Other projection thing | fai 20×145 | fai 55×270 | |
| Indicator | 166(W)×142(D)×48(H) | ||||
| Weight | Detector | About 820g | About 80ｇ | About 1.5kｇ | |
| Indicator | About1kg | ||||
| Accessories (one piece each) | Bit＋ #1 #2 | Bit ＋ #0 | |||
| An inspection report, a proofreading certificate, a traceability system figure | |||||
