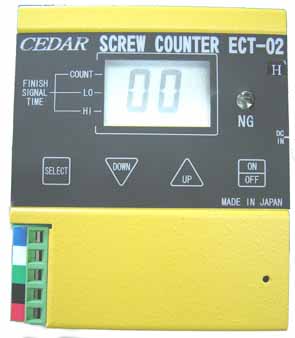

The signal from an electric driver is counted.
The bolting end signal from an electric driver is counted certainly.
A check is easy with sound and light.
A number check can be checked with a LCD display machine and buzzer sound.
It is a malfunction check by the timer function.
A screw can gnaw, idling detection can be performed and only normal screw bundle operation can be counted.
Count cancellation function
After the torque rise, if reverse rotation operation is performed immediately, the function in which the one number of counts returns is attached.
(When the reverse signal is outputted from the driver)

Scorew Counter - ECT series

Specifications:

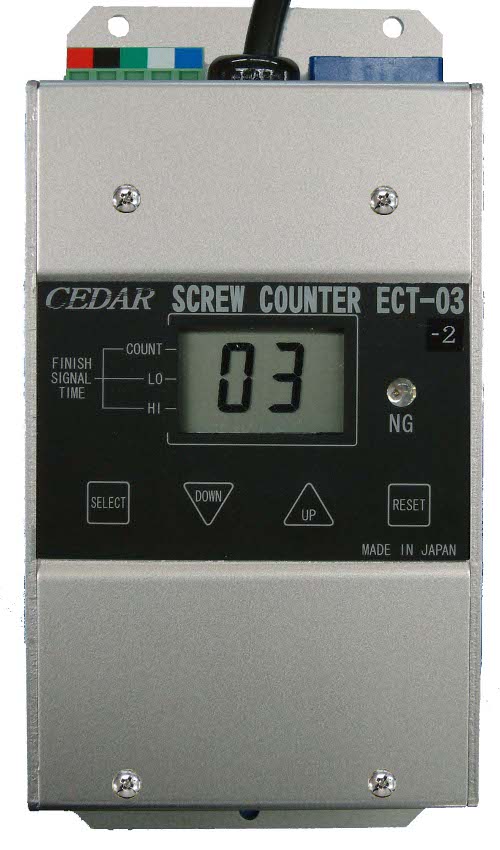

ECT-03 Work　sensor correspondence　

The signal from an electric driver is counted. A check is easy with sound and light. It is a malfunction check by the timer function.

Further
Reliable management is possible at a work sensor function.
It will become an error, if a work is removed before attaching the sensor which judges the existence of a work and becoming a bolting number.
The apparatus of others [ a bolting completion signal ] is connectable.
Since a signal will be outputted if it becomes Work O.K. or Count O.K.
You can also use an automatic line.
Work set timer function
A worker's safety can be considered and time until a work is set and fixed to a fixed implement can be set up.
Count cancellation function
After the torque rise, if reverse rotation operation is performed immediately, the function in which the one number of counts returns is attached.
(When the reverse signal is outputted from the driver)

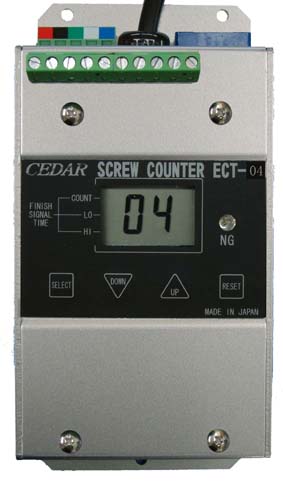

ECT-04　Work sensor and The part perception sensor correspondence

The signal from an electric driver is counted. A check is easy with sound and light. It is a malfunction check by the timer function. FurtherReliable management is possible at a work sensor function.


It will become an error, if a work is removed before attaching the sensor which judges the existence of a work and becoming a bolting number.
The apparatus of others [a bolting completion signal] is connectable.
Since a signal will be outputted if it becomes Work O.K. or Count O.K. You can also use an automatic line.
Work set timer functionA worker's safety can be considered and time until a work is set and fixed to a fixed implement can be set up.
Count cancellation function　The part perception sensor is inputted.
After the torque rise, if reverse rotation operation is performed immediately, the function in which the one number of counts returns is attached.(When the reverse signal is outputted from the driver)
The part perception sensor is inputted.
The signal from the sensor which detects parts etc. can be received and counted.

Scorew Counter - ECT series

Specifications:
