Yes-no decision conditions etc. can save five channels. .. A channel is only changed even if bolting conditions change. It is not necessary to reset up a maximum value and a minimum value one by one like former.

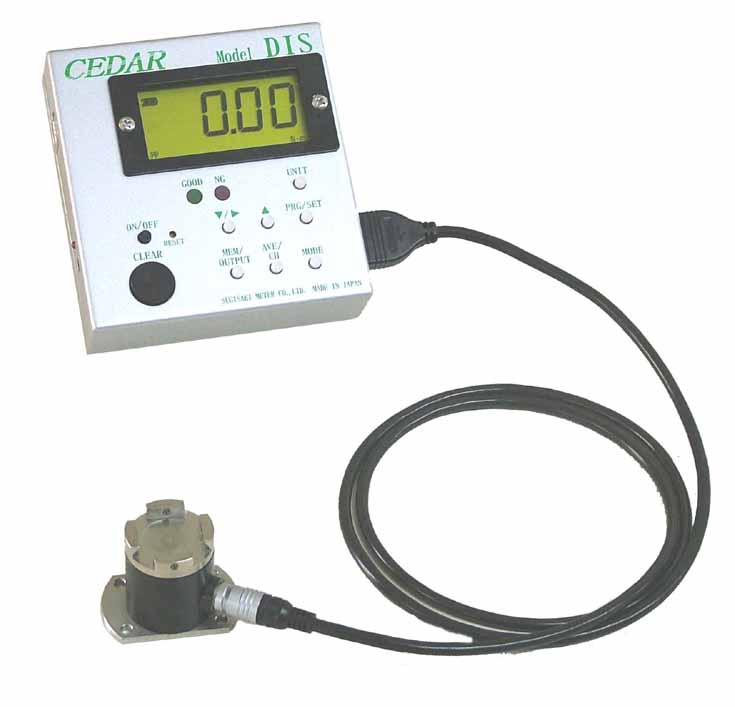

Detection part is very a compact!
The best for measurement of an automatic line
OW join. it rewinds at and is needlessness.
Disply screen became large. It is very legible .It became large 1.5times.
Various attachments are attached. Measurement is possible,with a bit attached.
-Yes-no decision
-Average calculation
-Data storage is 800 affairs.
-Data output at real time (every about 1/180 seconds).
-USB terminal data output
| DIS-IPS | ||||
| pecification | DIS-IPS20C | DIS-IPS5C | ||
| Measuring range | >0.20～20 N･m 2.0～200 kgf・cm 2.0～174 lbf・in |
0.020～5 N･m 0.20～50 kgf・cm 0.20～45 lbf・in |
||
| Accuracy | ±0.5% (499 or less digit±3digit) | |||
| Display | The 4 figures digital display of LCD | |||
| The measurement direction | CW-CCW (right and left) | |||
| Measuring mode |
P-P Peak | Peak load value hold. | ||
| T-R Track | Indication of real time torque value. | |||
| P-D Peak down | Holding Load Value at the moment to change from upward to downword. | |||
| C Real-time output | Load torque value is outputted every about1/ 180 second . | |||
| Decision function |
Setting of torque value | A maximum and a minimum value are in a measuring range, and a setup is
possible. Can confirm the set value by the buzzer sound or LED. |
||
| Automatic Clearance | Automatically clear the displayed value after certain time (0.5 - 3.0 sec,selectable at each 0.5 sec). Setting 0.0 sec for manual Zero clearance | |||
| One-touch-Zero Clearance | Easy Zero-Adjustment with pressing CLEAR button | |||
| The Maximum, the minimum, and the average value | The maximum, the minimum value, and average value of the saved data | |||
| Data spec. | Data transfer | ASCII format (Baud rate : 19200) | ||
| Data memory | 800 data stored | |||
| Power supply | Ni-Cd chargeable battery 1.2V×5cells 700mAh | |||
| Auto power save | 10 minutes no use, automatically switch off. | |||
| Charging time | From empty - about 3hours | |||
| Continunous working time | 12 hours | |||
| Attachment fit mouth | 20ｍm | |||
| Meter outside type dimension | 100（W）×105（D）×40（Ｈ） | |||
| Weight | Meter part 520g | |||
| Attachment | Fixed> Attachment 20㎜ M4/M5/M6/M8 |
cube 20*20*20 (M2.6/3/4/5/6) |
||
| OW joint OW-20 | OW joint OW-10 | |||
| Accessories (one piece each) |
AC/DC adaptor (Please choose AC adaptor out of 120V, and 230V.) | |||
| An inspection report, a proofreading certificate, a traceability system figure | ||||
