The DWT-200 Digital Torque Tester for Manual Wrenches is ideal for checking torque on manual torque wrenches up to 1,500 lbf-in with an accuracy of ± .5% F.S., ± 1 LSD. The tester features 3 measurement modes: Peak Down, Peak, or Real Time measurement modes and selectable units lbf-in, kgf-cm, N-m.
Yes-no decision conditions etc. can save five channels. .. A channel is only changed even if bolting conditions change. It is not necessary to reset up a maximum value and a minimum value one by one like former.
The main features:
-Yes-no decision
-Average calculation
-Data storage is 800 affairs.
-A convenient functional setup of a setup of a measurement start value etc.
-Data output at real time (every about 1/180 seconds).
-USB terminal data output
-It is a rechargeable battery drive, the installation to the spot is also easy.
-By the auto power OFF, It prevents forgetting to turn off the power.
-One-touch zero adjustment
-An auto clearance (0.1 0.5 1.0 1.5 2.0 2.5 3.0 sec) can be set up.
It is very convenient for a continuous check.
-The operation torque of a QL type and pre set type wrench driver can read measured value correctly in peak down mode (P-D).

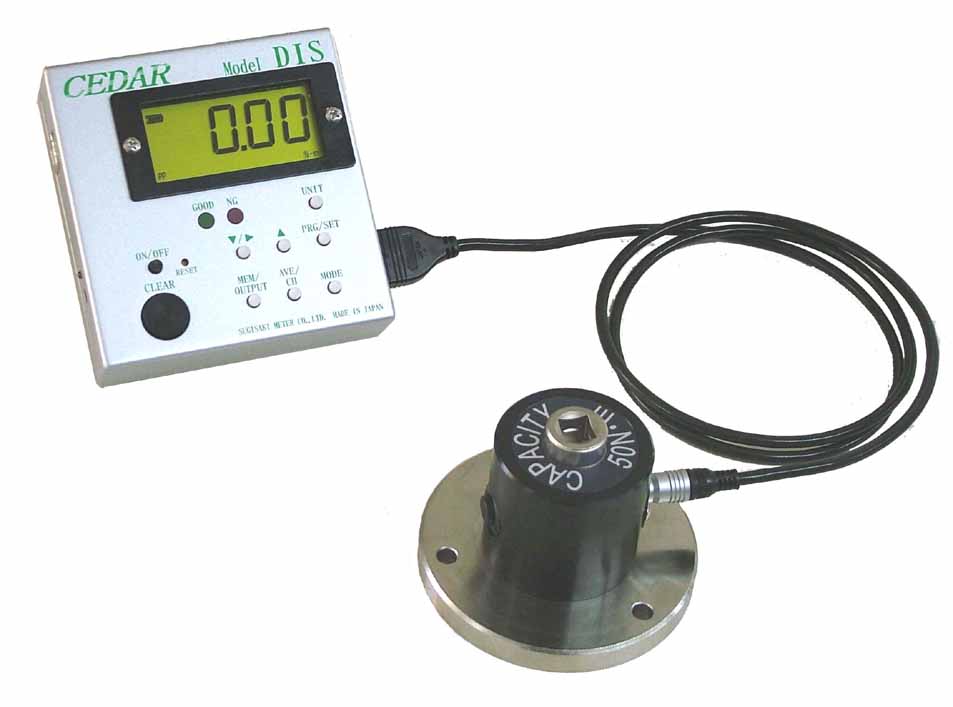

Specification | DIS-IP05 | DIS-IP5 | <DIS-IP50 | DIS-IP200 | DIS-IP500 | |
Measuring range (at time of Track) |
2.0~500 mN・m 0.20~50 kgf・cm 0.20~45 lbf・in |
0.020~5 N・m |
0.20~50 N・m |
2.0~200 N・m |
2.0~500 N・m |
|
Accuracy | ±0.5% (499 or less digit±3digit) | |||||
Display | The 4 figures digital display of LCD | |||||
>The measurement direction | CW-CCW (right and left) | |||||
Measuring mode |
P-P Peak | Peak load value hold. | ||||
T-R Track | Indication of real time torque value. | |||||
P-D Peak down | Holding Load Value at the moment to change from upward to downword | |||||
C Real-time output | Load torque value is outputted every about1/ 180 second . | |||||
Decision function |
Setting of torque value | A Maximum and a minimum value are in a measuring range, and a setup is
possible. Can confirm the set value by the buzzer sound or LED. |
||||
The Maximum, the minimum, and the average value | The maximum, the minimum value, and average value of the saved data | |||||
Automatic Clearance | Automatically clear the displayed value after certain time (0.5 - 3.0 sec,selectable at each 0.5 sec). Setting 0.0 sec for manual Zero clearance | |||||
One-touch zero | Easy Zero-Adjustment with pressing CLEAR button | |||||
Data spec. | Data transfer | ASCII fomat (Baud rate :19200) | ||||
Data memory | 800 data | |||||
Power supply | Ni-Cd chargeable battery 1.2V×5cells 700mAh | |||||
Auto power save | 10 minutes no use, automatically switch off. | |||||
about 3 hours | ||||||
Continunous working time | 12 hours | |||||
Meter outside type dimension | 100(W) x105(D) x40 (H) (It does not contain by the projection thing.) | |||||
Weight | Meter part 520g | |||||
Code length | Standard 1m (there are automatic machines no less than 4m as an option.) | |||||
AccessoriesBR> (one piece each) | AC/DC adaptor | |||||
An inspection report, a proofreading certificate, a traceability system figure |
