Yes-no decision conditions etc. can save five channels. .. A channel is only changed even if bolting conditions change. It is not necessary to reset up a maximum value and a minimum value one by one like former.

Features:
*The torque screwdriver is Ergonomic and light weight, yet ruggedly constructed
*Available in: lb-in, kg-cm and N-m (mN-m）
*Peak, Real Time and Peak Down measuring mode (selectable)
*800 data memory.
*Programmable High and Low set points with both audible beep and Green/Red LED indicator for uniform torque tightening or GO/NO GO testing
*Programmable screw tightening counter
*Programmable Auto Zero function resets unit to zero for easy operation
*Both CW and CCW operation
*ASCII format output(USB)
*Runs on internal Ni-MH batteries (for 12 hours) Auto shut-off after 10 min. of non-use
* AC charger and carrying case included.

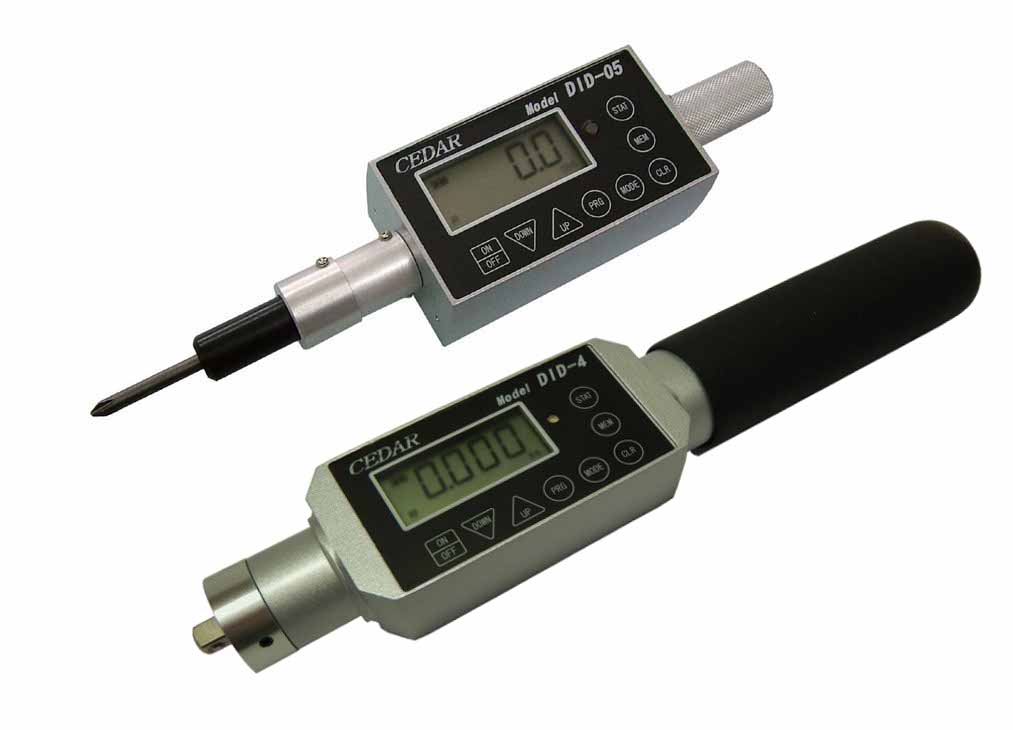

DIGITAL TORQUE DRIVER - DID-05/4

Specifications:

Specification		DID-05	DID-4
Measuring range		2.0 - 500 mN-m	0.020 - 4 N-m
		0.020～5 kgf-cm	0.20～40 kgf-cm
		0.020～4.5 lbf-in	0.20～35 lbf-in
Accuracy		± 0.5% (in case of reading 499 or less = last digit +/- 3 reading)
Display		The 4 figures digital display of LCD
The measurement direction		CW-CCW (right and left)
Measuring mode	P-P  Peak	Holding Peak Load Value
	T-R  Track	Showing Real time torque value ( Used for Zero-Adjustment )
	P-D  Peak down	Holding Load Value at the moment to change from upward to downword
	C Real-time output	Load torque value is outputted every about 1/ 160.
Decision function	Setting of torque value	Programmable High and Low setpoints with both audible beep and Green/Red LED indicator for uniform torque tightening or GO/NO GO testing
The Maximum, the minimum, and the average value		The data number, the maximum, the minimum value, and the average value of memory data are displayed.
Data spec.	Data transfer	ASCII format (Baud rate : 19200) When outputting data,the cable(USB miniB) is needed.
	Data memory	800 data
A setup of the number of counts		One to 99 count   (count in a direction with a bundle)
Power supply		Ni-MH chargeable battery 1.2V×4cells 800mAh
Auto power save		10 minutes no use, automatically switch off.
Charging time		From empty - less than 5hours
Continunous working time		12 hours
Bit /Socket part		φ4	HEX6.35
Weight		about 180g	about 400g
Attachment		Bit　（＋）　＃１　 For one-wey ×1　For fixation×1	Bit　（＋）　＃１　＃２
			Bit holder
			One way bit holder
Accessories  (one piece each)		AC/DC Adaptor (Charger)
		An inspection report, a proofreading certificate, a traceability system figure

Yes-no decision conditions etc. can save five channels. .. A channel is only changed even if bolting conditions change. It is not necessary to reset up a maximum value and a minimum value one by one like former.

Features:
*The torque screwdriver is Ergonomic and light weight, yet ruggedly constructed
*Available in: lb-in, kg-cm and N-m
*Peak, Real Time and Peak Down measuring mode (selectable)
*800 data memory.
*Programmable High and Low set points with both audible beep and Green/Red LED indicator for uniform torque tightening or GO/NO GO testing
*Programmable screw tightening counter
*Programmable Auto Zero function resets unit to zero for easy operation
*Both CW and CCW operation
*ASCII format output(USB)
*Runs on internal Ni-MH batteries (for 12 hours) Auto shut-off after 10 min. of non-use
* AC charger and carrying case included.

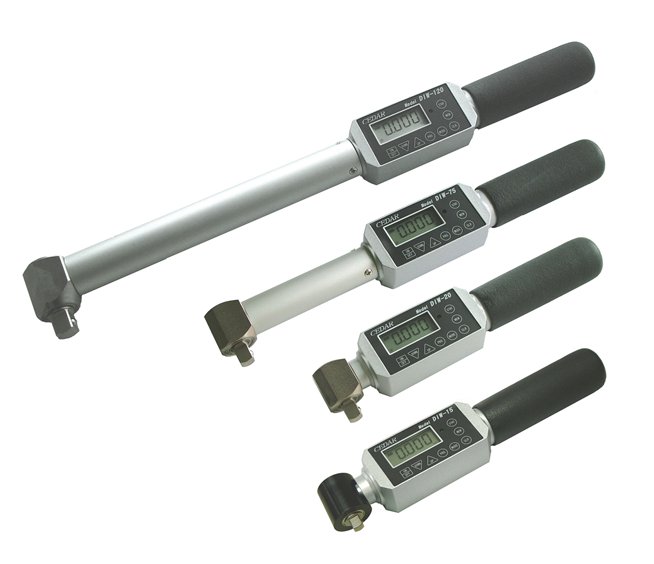

DIGITAL TORQUE WRENCH - DIW-120/75/20/15

Specifications:

Specification		DIW-15	DIW-20	DIW-75	DIW-120
Measuring range  N・m (at the time of Track)		0.20 - 15 N･m	0.20 - 20 N･m	0.20 - 75 N・m	2.0 - 120 N・m
		2.0～150 kgf・cm	2.0～200 kgf・cm	2.0～750 kgf・cm	20～1200 kgf・cm
		2.0～130 lbf・in	2.0～174 lbf・in	2.0～650 lbf・in	20～1040 lbf・in
Accuracy		0.5% (199 or less digit±1digit)	±0.5% (499 or less digit±3digit)		±0.5% (199 or less digit±1digit）
Display		The 4 figures digital display of LCD
The measurement direction		CW-CCW (right and left)
Measuring mode	P-P  Peak	Holding Peak Load Value
	T-R  Track	Showing Real time torque value ( Used for Zero-Adjustment )
	P-D  Peak down	Holding Load Value at the moment to change from upward to downword
	C Real-time output	Load torque value is outputted every about1/ 160 second
Decision function	Setting of torque value	Programmable High and Low setpoints with both audible beep and Green/ Red LED indicator for uniform torque tightening or GO/NO GO testing
The Maximum, the minimum, and the average value		The data number, the maximum, the minimum value, and the average value of memory data are displayed.
Data spec.	Data transfer	ASCII format (Baud rate : 19200)
	Data memory	800 data
A setup of the number of counts		One to 99 count   (count in a direction with a bundle)
Auto power save		10 minutes no use, automatically switch off.
Charging time		From empty - less than 5hours
Continunous working time		12 hours
Outside size		φ34(grip)×236(L)	φ34(grip)×235(L)	φ34(grip)×320(L)	φ34(grip)×445(L)
Weight (about)		430g	470g	620g	830g
Socket engagement		6.35  square, including steel ball	9.5 square, including steel ball		12.7 square, including steel ball
Attachment		One-way socket
Accessories  (one piece each)		AC/DC adaptor
		An inspection report, a proofreading certificate, a traceability system figure

DIS-RL05

DIS-RL2 & DIS-RL6

Yes-no decision conditions etc. can save five channels. .. A channel is only changed even if bolting conditions change. It is not necessary to reset up a maximum value and a minimum value one by one like former.

The main functions　(DIS series)
-Yes-no decision　
-Average calculation
-Data storage is 800 affairs.
-A convenient functional setup of a setup of a measurement start value etc.
-Data output at real time (every about 1/180 seconds).　
-USB terminal data output

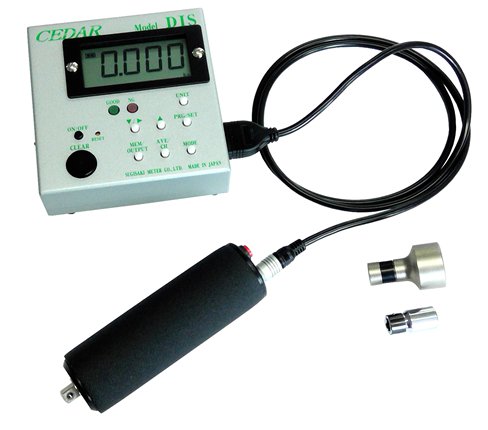

TORQUE TESTER - DIS-RL series

Specifications:

Specification		DIS-RL05	DIS-RL2	DIS-RL6
Measuring range		2.0～500 mN･m 0.020～5 kgf・cm 0.020～4.5 lbf・in	0.010～2 N･m 0.10～20 kgf・cm 0.10～17.4 lbf・in	0.10～6 N･m 1.0～60 kgf・cm 1.0～54lbf・in
Accuracy		±0.5% (or less 499±3digit)	±0.5% (or less 199±1digit)
Display		The 4 figures digital display of LCD
The measurement direction		CW-CCW (right and left)
Measuring mode	P-P  Peak	Peak load value hold.
	T-R  Track	Indication of real time torque value.
	P-D  Peak down	Holding Load Value at the moment to change from upward to downword
	C Real-time output	Load torque value is outputted every about1/ 180 second by RS232C.
Decision function	Setting of torque value	A top and a minimum value are in a measuring range, and a setup is possible. Can confirm the set value by the buzzer sound or LED.
The Maximum, the minimum, and the average value		The maximum, the minimum value, and average value of the saved data
clearance		It is a display clearance in set-up time.   (0.5 - 3.0 sec)
One-touch zero		A clear button is pushed and it is a zero. data output.
Data spec.	Data transfer	ASCII format (Baud rate : 19200)
	Data memory	800 data stored
Power supply		Ni-Cd chargeable battery 1.2V×4cells 　450mAh
Auto power save		10 minutes no use, automatically switch off.
Charging time		about 3hours
Continunous working time		10 hours
Meter outside type dimension		100(W) x105(D) x40 (H) (It does not contain by the projection thing.)
Weight		Meter part    520g
Bit/Socket part		Φ4	HEX 6.35
Accessories  (one piece each)		Φ4 bits (＋)♯0/♯1	6.35HEX bits (＋)　♯1/♯2
			bit holder / one way bit holder
		Receipt case
		AC/DC adaptor
		An inspection report, a proofreading certificate, a traceability system figure

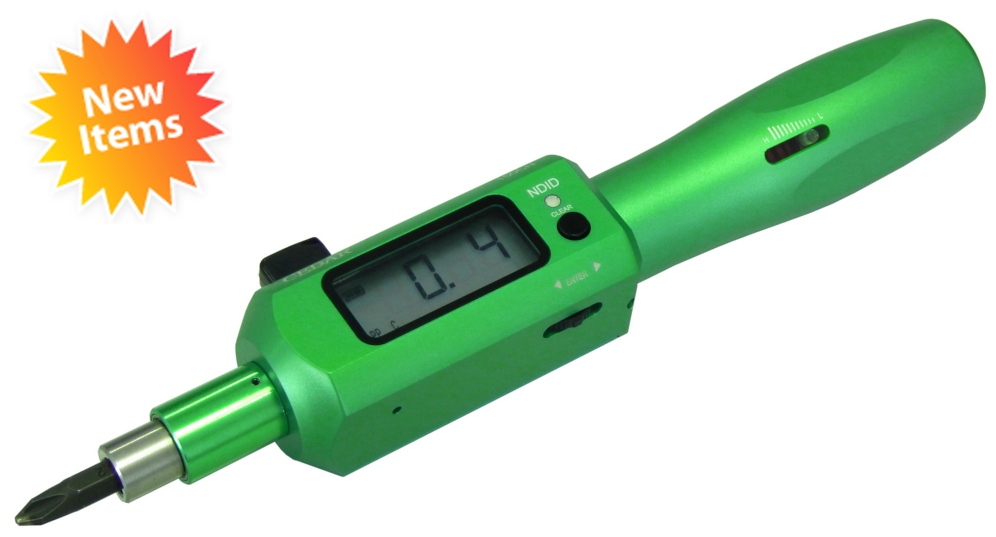

DIGITAL TORQUE SCREWDRIVER - NDID-150CN

Adjust the torque and click it Torque and tightening number are also recorded

-Overwhelming workability of click type
-Adjustable click torque
-Management of screw tightening torque and tightening number
-Recording tightening torque data
-Saving and transferring data to USB memory
-Stylish form excellent in functionality
